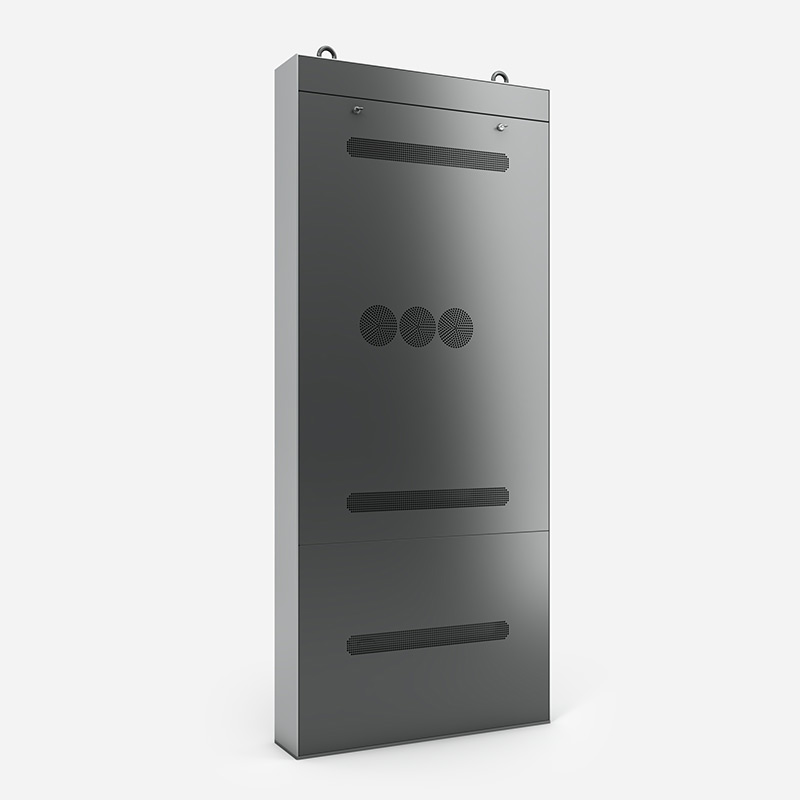

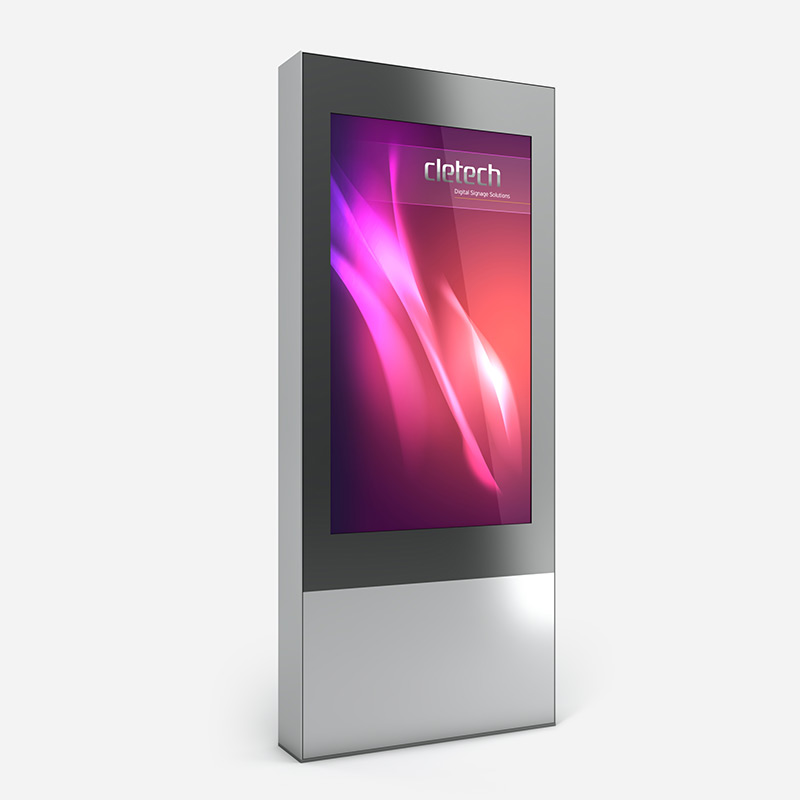

XR Single Sided Digital Signage Outdoor Totem Enclosure
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Orientation | Landscape, Portrait |
| Configuration | Single Sided |
| Product Family | X Series |
| Touch | No TouchThis product is not touch-enabled, but it can be manufactured with touch functionality based on your project requirements. Please contact our sales team for more information. |
| Color OptionsThe specified colors are standard. For requests involving different colors, please contact our sales team. | Anthracite, Black, Silver, White |
Engineered for Harsh Outdoor Environments

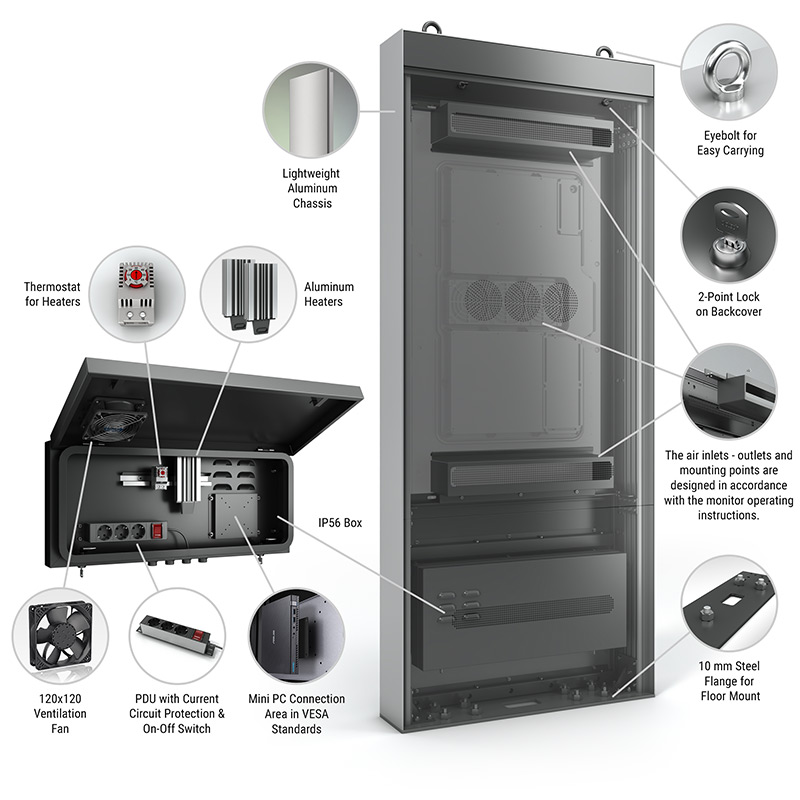

The Cletech XR Single Sided Digital Signage Outdoor Totem Enclosure is a robust and weather-resistant solution engineered for outdoor digital signage applications. Designed to accommodate 46", 49", 55", and 75" Samsung OH and LG XE series monitors, it supports both portrait and landscape orientations. The ventilation slots are precisely designed to meet the technical specifications of the supported monitors, ensuring optimal heat dissipation and system longevity. The monitor mounting points align strictly with manufacturer standards for safe and secure installation. Built with an air-channeled aluminum main frame and galvanized steel body panels, the enclosure is coated with zinc-rich primer and outdoor-durable electrostatic powder paint. Optionally, it can be manufactured with a cathodic coating. Two removable eyebolts facilitate safe handling during transport and installation. Inside the cabinet, an IP56-rated control box houses a thermostat-controlled heater and a premium German EBM-Papst fan. Additional features include a surge-protected, switchable 3-socket PDU, 4 cable glands, and a VESA-compatible mini-PC mount.
Smart, Durable, and Installation-Ready
The Cletech XR Outdoor Totem Enclosure is built for performance in tough environments, compatible with top-tier Samsung OH and LG XE monitors. Featuring precision-engineered ventilation, a corrosion-resistant body, and secure mounting, it ensures long-term reliability. Its integrated IP56-rated box includes a heater, premium fan, and power distribution unit for dependable operation. Ideal for high-visibility outdoor signage in both portrait and landscape modes.
Built to Endure the Outdoors
Optimized for Samsung OH and LG XE series monitors with durable, climate-ready engineering.
Key Features for Reliable Outdoor Operation
Smart Ventilation System
Ventilation design strictly follows monitor brand specifications for safe heat management.
Durable Construction

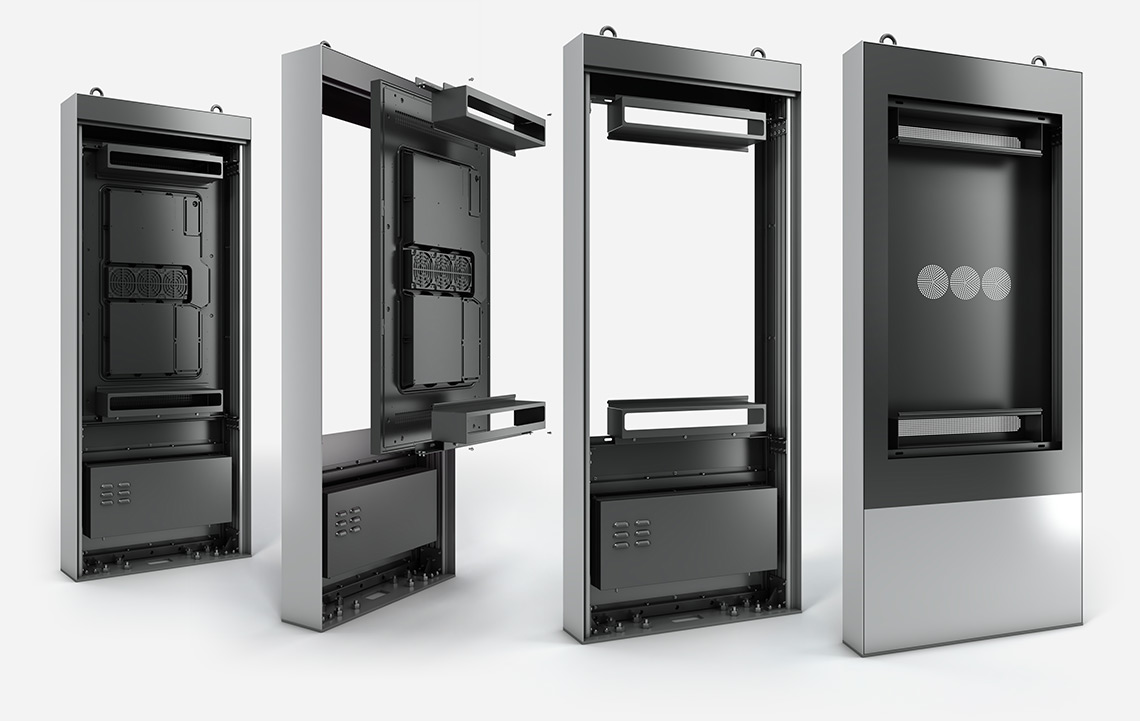

Main frame is air-channeled aluminum, with galvanized steel panels and UV-resistant coating.
Climate-Controlled IP56 Box
Features thermostat-controlled heater, EBM-Papst fan, power unit, cable ports, and mini-PC mount.
| Monitor | 46" | 49" | 55" | 75" | 85" |
|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||||
| Base Feets | No | ||||
| Base Wheels | No | ||||
| Tempered Glass | No | ||||
| Touch Screen | No | ||||
| Ventilation Fans | No | ||||
| Power Control | 3-Outlet Surge-Protected Switched PDU in IP Rated Box | ||||
| Lockable Cover(s) | Dual-Point Locking Mechanism | ||||
| Body Materials | Aluminum Main Chasis, Galvanized steel and carbon steel. | ||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Options | No | ||||
