M5 Wall Mount Digital Signage Outdoor Monitor Enclosure
Outdoor enclosure for high-brightness monitors.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Configuration | Single Sided |
| Orientation | Portrait, Landscape |
| Product Family | M Series |
| Touch | No TouchThis product is not touch-enabled, but it can be manufactured with touch functionality based on your project requirements. Please contact our sales team for more information. |
| Color OptionsThe specified colors are standard. For requests involving different colors, please contact our sales team. | Anthracite, Black, Silver, White |
Superior Protection and Durable Structure
The Cletech M5 outdoor monitor enclosure is specifically designed to deliver high-brightness screen performance even in the harshest environmental conditions. Compatible with screen sizes ranging from 32" to 75", it supports both vertical and horizontal orientations.
With an IP56 protection rating, the M5 protects monitors from rain, dust, extreme temperatures, and other external elements, ensuring long-term durability and reliable operation. The front panel comes standard with 8 mm extra clear tempered glass, with optional upgrades including 4+4 mm laminated glass with IK10 impact resistance, as well as anti-reflective and anti-glare options.

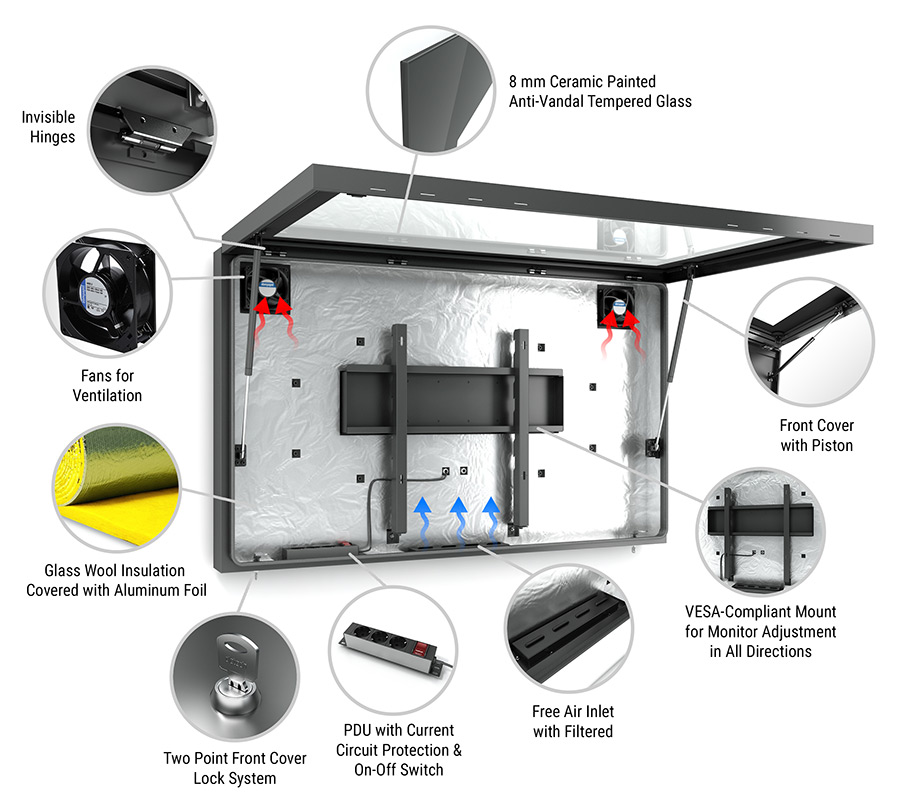

The enclosure features internal insulation made from glass wool and a front-opening, gas spring-assisted cover with hidden hinges and dual locking mechanisms, allowing easy service access. Its galvanized steel body is coated with a zinc-based primer followed by outdoor-grade electrostatic powder coating. For project-specific requirements, a cataphoretic coating can be requested instead of primer.
Smart Cooling and Flexible Hardware Support
The Cletech M5 not only protects monitors physically but also ensures safe operation through effective thermal management. It comes standard with free air intake and high-quality EBM Papst exhaust fans made in Germany. Optionally, a tangential air curtain fan can be added to vent the warm air trapped between the screen and the glass.
For power management, the enclosure includes a standard 3-outlet PDU, with an optional 6-outlet version available for more demanding setups. A durable monitor mounting bracket is included, along with a VESA-compatible area for mini PC installation.
In applications requiring user interaction, the M5 can also be equipped with a PCAP touchscreen that supports up to 40 simultaneous touch points, making it ideal for interactive outdoor solutions.
Rugged Outdoor Protection, Seamless Display Performance
Engineered to safeguard monitors in all weather conditions while maintaining high visibility.
Robust and Smart Monitor Enclosure for Harsh Outdoor Conditions
Cletech M5 is designed to protect and operate high-brightness displays reliably in any environment.
Easy Maintenance Access
Gas spring-assisted, hidden-hinge front cover with dual locks enables safe and quick servicing.
IP56 Protection Standard
Provides maximum resistance against dust, water, humidity, and temperature fluctuations in outdoor environments.
Wide Screen Compatibility
Supports screens from 32" to 75" and offers an optional PCAP touch surface for interactive use.
| Monitor | 32" | 46" | 49" | 50" | 55" | 65" | 75" |
|---|---|---|---|---|---|---|---|
| Mount Type | Wall Mounting: Mounted to the wall using a custom-designed wall bracket specifically manufactured for the product. | ||||||
| Base Feets | No | ||||||
| Base Wheels | No | ||||||
| Tempered Glass | 8 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | ||||||
| Touch Screen | Optional PCAP Touch | ||||||
| Ventilation Fans | 2 x EBM-Papst Fans (120x120 mm) with High Airflow Exhaust Capability | 4 x EBM-Papst Fans (120x120 mm) with High Airflow Exhaust Capability | |||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | 6-Outlet Surge-Protected Switched PDU | |||||
| Lockable Cover(s) | Front Door with Dual-Point Locking Mechanism | ||||||
| Body Materials | Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Options | 4+4 IK10 Anti-Reflective Tempered Glass Tangential Fans for Air Curtain Heater with Thermostat UV Protection Film | ||||||
