RD Double Sided Digital Signage Outdoor Totem Enclosure
Built for the Outdoors, Ready for the Future
The Cletech RD Double Sided Digital Signage Outdoor Totem Enclosure is engineered for peak outdoor performance. Supporting high-brightness monitors from 46" to 75", this robust enclosure ensures seamless integration with most global display brands. Its double-sided structure is ideal for vertically-oriented applications such as transit stops, outdoor malls, or city centers, where visibility and reliability are non-negotiable.

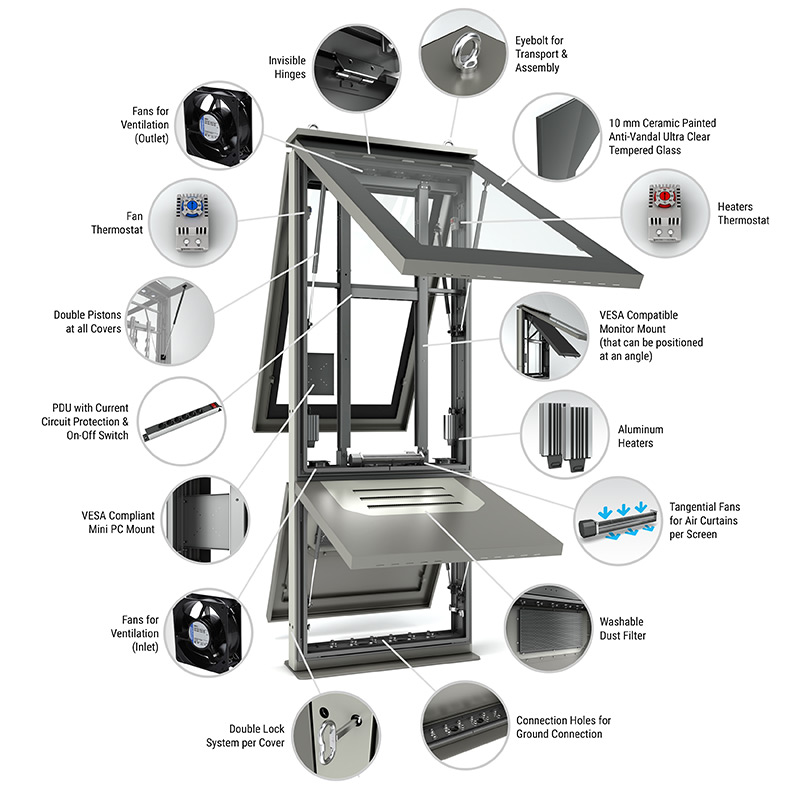

Protection is at the heart of the design: with IP65-certified shielding against water, dust, snow, extreme temperatures, and humidity. The enclosure is built to resist vandalism and withstand demanding public environments. The standard 10 mm extra-clear ceramic printed tempered glass front can be upgraded to laminated, anti-reflective, or IK10-rated options. Hidden hinges, dual locking points, and gas pistons reinforce both security and serviceability.
From its EBMPapst German fan system to its aluminum heat-controlled panel heater and VESA-compatible mounts, this is a complete solution tailored for uninterrupted operation. It’s ready for integration into smart urban infrastructure—rugged, refined, and ready for anything.
Engineered to Endure, Designed to Impress
Built for continuous performance in the harshest conditions, the Cletech RD Double Sided Digital Signage Outdoor Totem Enclosure is a versatile and future-proof platform for smart city applications. Whether in transit hubs, public parks, or pedestrian plazas, this unit delivers uncompromising visibility and unmatched durability.
The main chassis is made from air-channeled aluminum profiles, while the body panels feature galvanized steel coated with a zinc-rich primer and outdoor-grade electrostatic powder paint. For even more resilience, a cathodic dip coating option is also available. The integrated PDU offers 6–8 surge-protected outlets with switches, and removable eyebolts assist with installation and transport.
Designed with technicians in mind, the VESA-compliant monitor brackets tilt into service mode, simplifying maintenance. Cooling is handled by 6 to 8 premium EBMPapst fans and a tangential air curtain fan between the monitor and the glass. A thermostat-regulated aluminum panel heater maintains internal climate stability. Optional PCAP touch support (up to 40 points) and concealed key access make it a secure and interactive solution for modern outdoor environments.
Ultimate Outdoor Protection, Seamless Integration
Designed to safeguard high-brightness displays with industrial-grade engineering for year-round, double-sided performance.
Top Features of the Cletech RD Outdoor Totem Enclosure
Wide Monitor Compatibility
Supports 46" to 75" high-brightness monitors from multiple global brands.
IP65 & Vandal Resistance
Fully sealed against water, dust, and impacts, with reinforced security features.
Active Thermal Management
Equipped with high-quality fans and a thermostat-controlled heater for climate control.
Technician-Friendly Design
Serviceable brackets and accessible mounting allow quick and safe maintenance.
Optional PCAP Touch
Available with up to 40-point touch functionality for interactive installations.
Urban Integration Ready
Compatible with smart city furniture and perfect for transit and public areas.
| Monitor | 46" | 49" | 55" | 65" | 75" |
|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||||
| Base Feets | No | ||||
| Base Wheels | No | ||||
| Tempered Glass | 10 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | ||||
| Touch Screen | Optional PCAP Touch | ||||
| Ventilation Fans | Equipped with 2 x EBM-Papst (120x120 mm) fans for fresh air intake and 4 x EBM-Papst (120x120 mm) fans for hot air exhaust, 2 x Tangential Fans for Air Curtain | Equipped with 2 x EBM-Papst (120x120 mm) fans for fresh air intake and 6 x EBM-Papst (120x120 mm) fans for hot air exhaust, 2 x Tangential Fans for Air Curtain | |||
| Power Control | 8-Outlet Surge-Protected Switched PDU | ||||
| Lockable Cover(s) | All Doors with Dual-Point Locking Mechanism | ||||
| Body Materials | Aluminum Main Chasis, Galvanized steel and carbon steel. | ||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Options | 4+4 IK10 Anti-Reflective Tempered Glass Heater with Thermostat UV Protection Film | ||||
