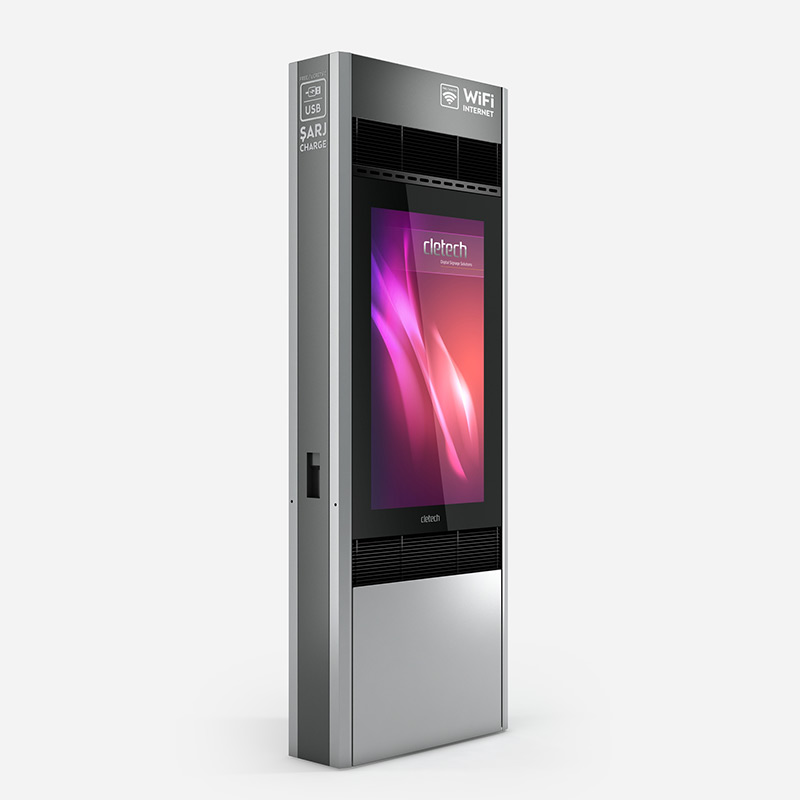

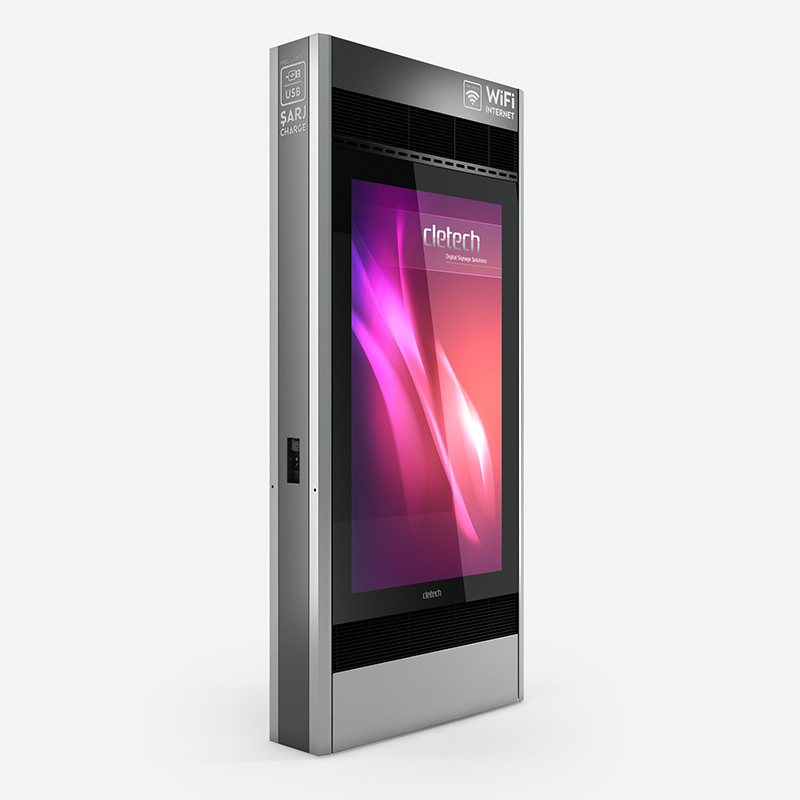

FX Double Sided Digital Signage Outdoor Totem Enclosure

ConfigurationDouble Sided

OrientationPortrait

Product FamilyF Series

TouchNo Touch

Color OptionsBlack, Silver, Anthracite

Display Size:

Rugged Protection for High-Impact Outdoor Use

The Cletech FX Double Sided Digital Signage Outdoor Totem Enclosure is specifically engineered to meet the challenges of outdoor digital display applications. Compatible with 46" to 75" high brightness monitors from various brands, it delivers unmatched visibility in direct sunlight. Its IP56-rated enclosure offers comprehensive protection against dust, rain, snow, humidity, and extreme temperatures, ensuring uninterrupted performance year-round. The dual-sided vertical orientation maximizes engagement, while its vandal-resistant build ensures safety in high-traffic areas. With 8mm extra clear ceramic-printed tempered glass as standard, optional anti-reflective and IK10 laminated glass configurations enhance durability and legibility. This totem is the reliable solution for public transit areas, cityscapes, and any weather-intensive location requiring 24/7 robust performance.

Smart Design Meets Functional Versatility

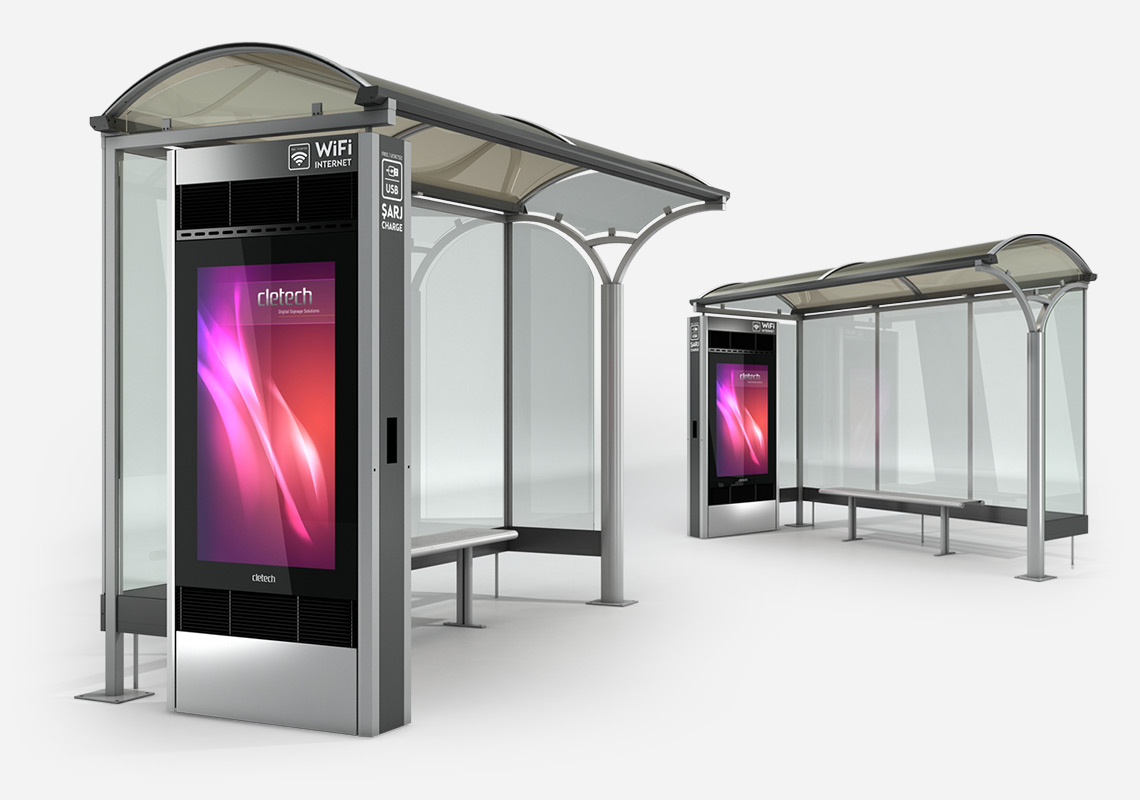

Built with galvanized steel components coated with weather-resistant electrostatic powder paint, the Cletech FX Totem combines strength with aesthetic adaptability. Its interior is insulated with glass wool and ventilated by 6 to 8 high-quality German-made ebm-papst fans for effective cooling. A thermostat-controlled aluminum panel heater comes standard for consistent internal temperature control. Optional extras like a tangential air curtain fan between the monitor and glass and PCAP touchscreen functionality supporting up to 40 touchpoints add to its versatility. VESA-standard mounts support easy installation of both monitors and Mini PCs. Additional options include side-surface USB fast-charging points. This unit not only enhances outdoor messaging but integrates seamlessly with bus stops and urban furniture, making it the smart choice for modern cities.

Top Features of the Cletech FX Outdoor Totem Enclosure

Wide Monitor Compatibility

Supports 46" to 75" high brightness monitors from multiple brands.

All-Weather Protection

IP56-rated enclosure defends against rain, dust, snow, and temperature extremes.

Robust Steel Body

Galvanized and powder-coated steel construction for long-lasting outdoor durability.

Advanced Cooling & Heating

Equipped with ebm-papst fans and a thermostat-controlled heater for internal climate control.

Vandal-Resistant Glass

Standard 8mm ceramic-printed tempered glass with optional anti-reflective, IK10-rated alternatives.

Versatile & Expandable Design

Includes VESA mounting for monitors and PCs, plus optional touchscreen and USB fast-charging ports.

Monitor	46"	65"
Mount Type	Floor Mounting: Should be anchored to the surface through the connection holes on the base flange.
Base Feets	No
Base Wheels	No
Tempered Glass	8 mm Extra Clear Ceramic Painted Tempered Glass (Standard)
Touch Screen	Optional PCAP Touch
Ventilation Fans	Equipped with 3 x EBM-Papst (120x120 mm) fans for fresh air intake and 3 x EBM-Papst (120x120 mm) fans for hot air exhaust.	Equipped with 4 x EBM-Papst (120x120 mm) fans for fresh air intake and 4 x EBM-Papst (120x120 mm) fans for hot air exhaust.
Power Control	6-Outlet Surge-Protected Switched PDU
Lockable Cover(s)	All Doors with Dual-Point Locking Mechanism
Body Materials	Galvanized steel and carbon steel.
Coating	Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating
Custom Color	Can be produced for orders of 20 units or more, or upon request for special projects.
Client Logo	Can be produced for orders of 20 units or more, or upon request for special projects.
Options	4+4 IK10 Anti-Reflective Tempered Glass Heater with Thermostat Tangential Fans for Air Curtain UV Protection Film USB Fast-Charging Points
