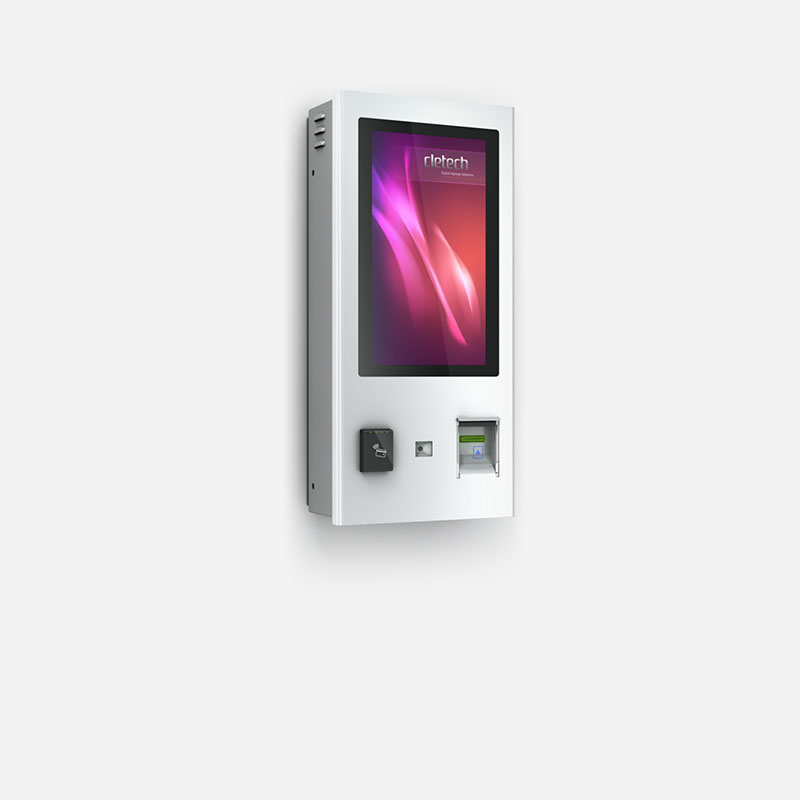

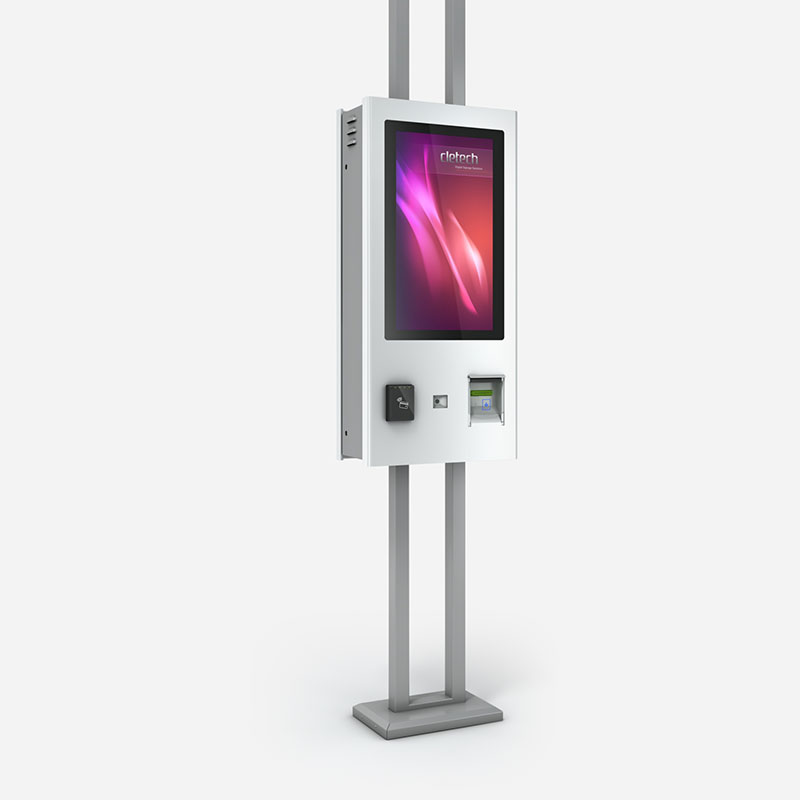

K Series Outdoor Self-Service Kiosk Enclosure
Reliable Performance in Every Condition
Self-service systems are becoming essential in public and outdoor environments, where reliability under tough conditions is key. Designed to withstand extreme weather, this new generation of enclosures combines durable metal construction with advanced mounting flexibility. Compatible with 22", 27", and 32" displays, it supports vertical installation via VESA-standard mounts, ensuring effortless integration. Its frameless front is ideal for touch displays, offering a clean and responsive user interface. A smart ventilation system with passive air intake and side-mounted fans maintains consistent airflow, keeping internal components cool. Galvanized and carbon steel construction, finished with electrostatic powder coating, guarantees long-term durability and resilience against the elements.
Flexibility, Power, and Customization in One Design
Beyond strength, this enclosure delivers unmatched adaptability. It can be securely floor-mounted with two base options or installed from floor to ceiling for dual-point stability. Inside, a dedicated VESA-mount area for Mini PCs or media players comes standard with a surge-protected, switchable PDU for power management. It supports integration of peripherals like POS devices, barcode scanners, and contactless readers with ease. The concealed hinge and lock system offer both security and effortless servicing. Optional custom paint finishes and PCAP touch integration make it ideal for tailored projects, allowing maximum configuration freedom and brand-specific adaptation for any environment.
A Design That Merges Technology and Durability
Developed for a user-friendly self-service experience, engineered to withstand all outdoor conditions.

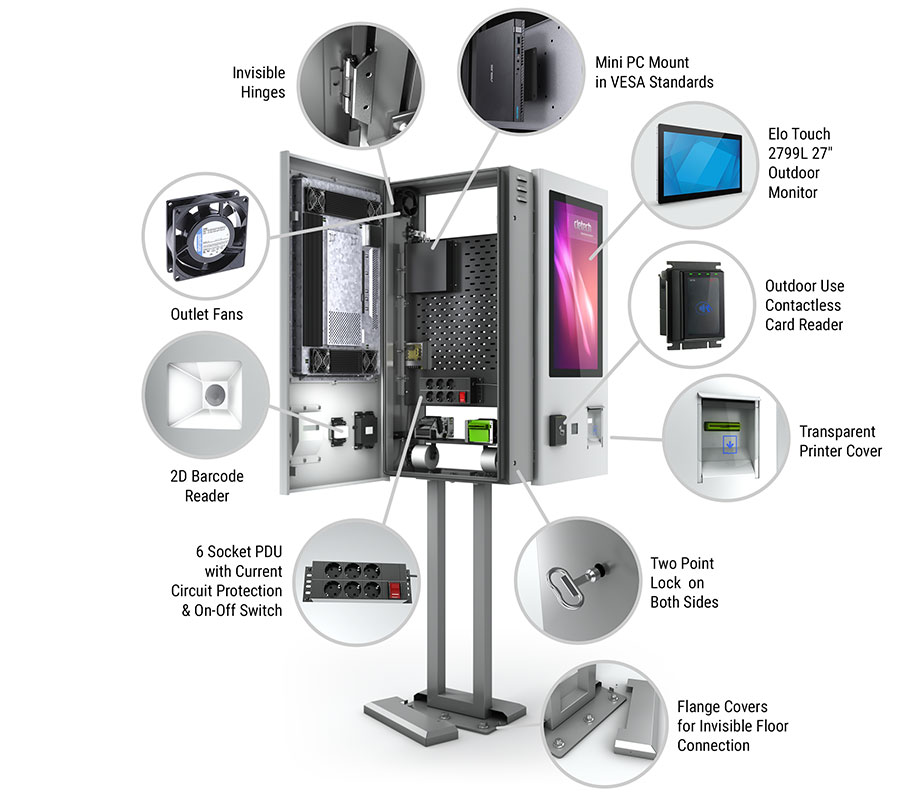

Key Features
Smart Ventilation System
Optimal temperature balance through bottom intake and side exhaust airflow.
Concealed Hinges
Enhanced security while ensuring easy maintenance access.
VESA-Compatible Mounting
Quick installation and flexible integration with standard mounting holes.
Multi-Screen Compatibility
Fully supports 22", 27", and 32" outdoor touch displays.
Durable Steel Construction
Galvanized and carbon steel body built for long-lasting performance.
Customizable Design
Optional RAL color choices and PCAP touch configurations for tailored projects.
| Monitor | 22" | 27" | 32" |
|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||
| Base Feets | No | ||
| Base Wheels | No | ||
| Tempered Glass | No | ||
| Touch Screen | No | ||
| Ventilation Fans | 2 x Exhaust Fan (80x80 mm) | ||
| Power Control | 6-Outlet Surge-Protected Switched PDU | ||
| Lockable Cover(s) | Front Door with Dual-Point Locking Mechanism | ||
| Body Materials | Galvanized steel and carbon steel. | ||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||
| Options | Thermal Printer, POS Mount, Barcode Reader | ||
