XRL Indoor & Outdoor Totem Enclosure for LED Technology
A Totem Enclosure Designed for Every Environment
The Cletech XRL Indoor & Outdoor Totem Enclosure for LED Displays is designed to meet demanding durability and flexibility requirements. Supporting standard screen sizes of 79" (100x175 cm) and 88" (100x200 cm), the enclosure can also be manufactured in custom dimensions for specific projects. Its structure combines an aluminum main chassis with galvanized and carbon steel components, ensuring long-term strength and reliability. The glass-free front surface requires outdoor-rated LED panels for exterior use, while indoor installations can utilize both protected and non-protected LED panels. Available in both portrait and landscape versions, the enclosure adapts easily to different content and spatial needs. The electrostatic powder coating applied over a zinc-based primer enhances both visual quality and resistance to environmental factors.
Easy Installation, Reliable Technical Infrastructure
The Cletech XRL Totem Enclosure is floor-mounted using a foundation system that guarantees stability and safety. A removable eyebolt located on the top allows easy lifting and positioning during installation. LED panel mounting brackets are supplied as standard, while bolted connections enable precise alignment adjustments. Thanks to its modular structure, the entire hanging system can be removed when required. The enclosure features natural air outlets as standard, with optional fan-assisted ventilation available. Inside the cabinet, an IP65-rated control box houses a DIN rail, thermostat-controlled heater, EBM Papst ventilation fan, VESA-compatible Mini PC mounting area, LED controller connections, and a surge-protected, switched PDU—delivering a professional and secure technical setup.

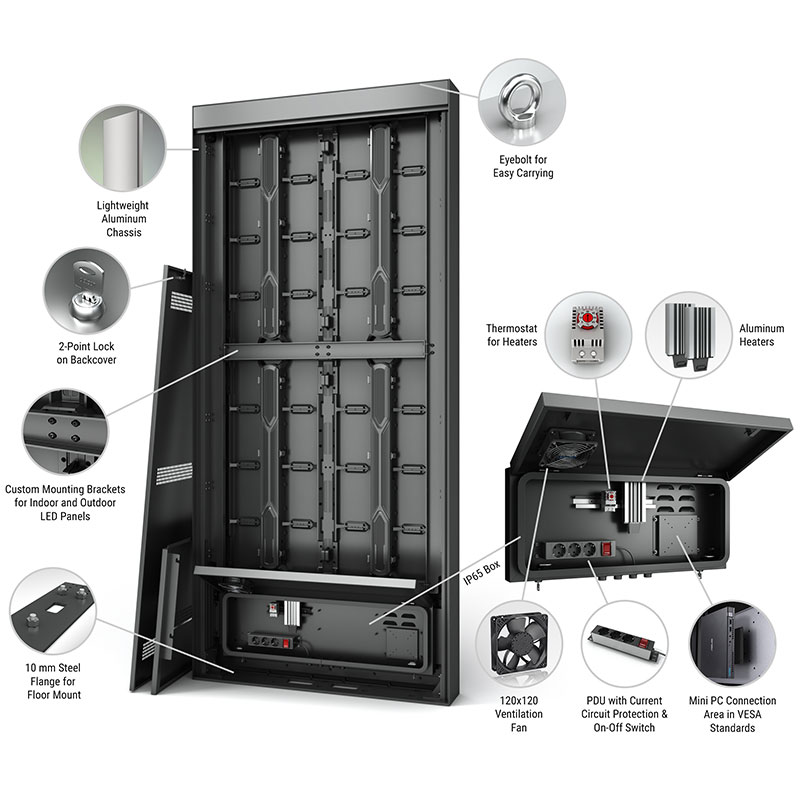

Technical Layout Overview
The internal layout and components are engineered to ensure reliable and long-lasting operation.
Key Features
Custom Size Production
Enclosures can be manufactured according to project-specific dimensions.
Portrait & Landscape Options
Flexible orientation models for diverse applications.
Heavy-Duty Construction
Aluminum and steel body ensures high resistance in harsh environments.
Modular Mounting System
Adjustable and removable mounting structure simplifies service and maintenance.
Optional Cooling System
Fan ventilation can be added based on operational needs.
RAL Color Flexibility
Standard and custom RAL colors available for design consistency.
| Monitor | 79" (100x175 cm) / 88" (100x200 cm) | ||||
|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||||
| Base Feets | No | ||||
| Base Wheels | No | ||||
| Tempered Glass | No | ||||
| Touch Screen | No | ||||
| Ventilation Fans | Optional | ||||
| Power Control | 3-Outlet Surge-Protected Switched PDU in IP Rated Box | ||||
| Lockable Cover(s) | Dual-Point Locking Mechanism | ||||
| Body Materials | Aluminum Main Chasis, Galvanized steel and carbon steel. | ||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Options | Custom Display Size & Mounts | ||||
