Cletech
X02 Single Sided Digital Signage Indoor Totem Enclosure

X02 Single Sided Digital Signage Indoor Totem Enclosure

OrientationPortrait
ConfigurationSingle Sided
TouchNo Touch
Color OptionsWhite, Silver, Black, Anthracite
Display Size:
X02 Creative

Seamless Integration for Modern Indoor Digital Signage

The Cletech X02 Single Sided Digital Signage Indoor Totem Enclosure is the ideal solution for high-impact indoor communication. Engineered to accommodate screen sizes from 49" to 98", it offers unmatched compatibility with a wide range of professional signage monitors, including heavier and thicker models. Thanks to its vertically-oriented, single-sided VESA-standard design, installation is both simple and secure.

Built with a specially shaped aluminum profile and reinforced with galvanized and carbon steel elements, the X02 ensures structural durability while maintaining a sleek, professional look. The enclosure's ultra-clear 4 mm ceramic-printed tempered glass front ensures brilliant display visibility and added protection. Efficient ventilation is provided by passive air inlets at the base and two 120x120 mm exhaust fans at the bottom, maintaining optimal internal temperature even during extended use. Whether in shopping malls, airports, retail stores, or hospitality venues, the X02 enhances digital engagement with style and reliability.

X02 1
X02 2

Reliable Design with Smart Features and Future-Ready Customization

Designed for both performance and ease of use, the Cletech X02 enclosure is more than just a screen housing—it's a comprehensive digital signage solution. With hidden ground mounting points and a two-point lockable segmented back door, setup and maintenance are effortless. The removable back panels provide fast access for service operations without compromising security or aesthetics.

Its fully enclosed body and discreet cable management system support clean and organized installations, while the integrated VESA mount area for media players or mini PCs ensures efficient use of internal space. Included as standard, a three-outlet surge-protected, switchable PDU guarantees stable power delivery. For projects that require interactivity, optional PCAP touch functionality or glassless configurations for touch monitors are available. Finished in electrostatic RAL powder coating, with customizable color options for specific project needs, the X02 stands as a versatile, future-proof investment in any modern interior environment.

X02 Creative

Built to Protect, Designed to Perform

High-clarity protection, advanced airflow, and unmatched compatibility in one smart enclosure.

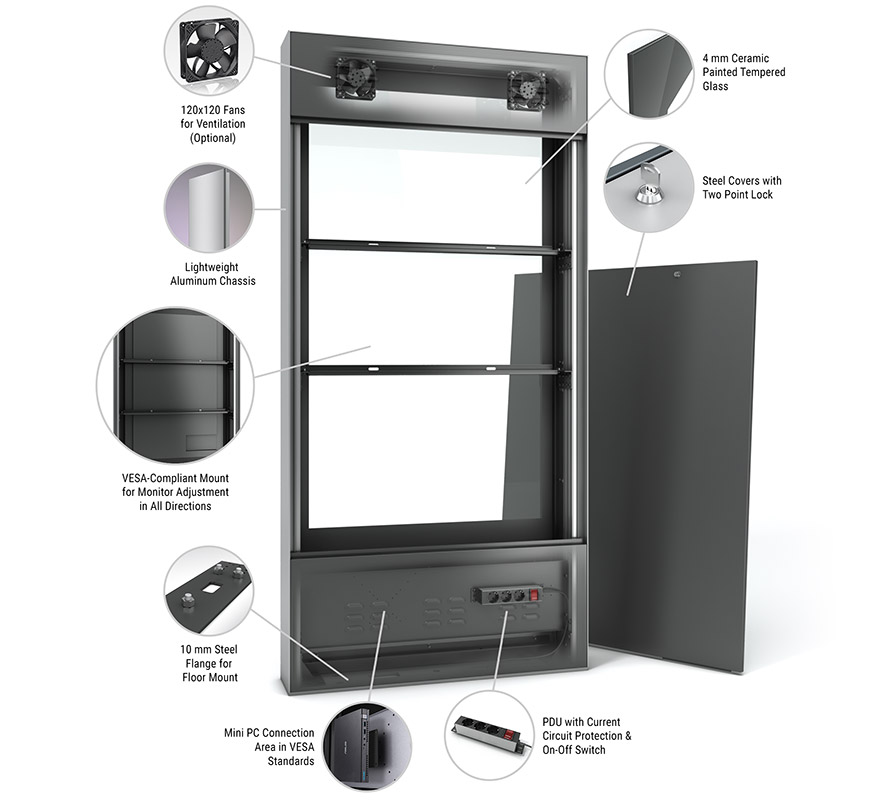

X02 Details

Highlighted Features

X02 3
Wide Screen Compatibility

Wide Screen Compatibility

Supports digital signage monitors from 49" to 98" including heavier, thick-profile displays.

Ultra-Clear Tempered Glass

Ultra-Clear Tempered Glass

Equipped with 4 mm ceramic-printed tempered glass for durability and excellent screen visibility.

Service-Friendly Design

Service-Friendly Design

Segmented lockable rear doors and hidden ground mount points for easy installation and maintenance.

Effective Ventilation System

Effective Ventilation System

Features passive intake vents and four top-mounted 120x120 mm exhaust fans for consistent cooling.

Power & Media Management

Power & Media Management

Comes with a 3-outlet surge-protected, switchable PDU and space for mini PCs or media players.

Customizable Aesthetics

Customizable Aesthetics

Powder-coated in standard RAL colors with optional color customization for unique project needs.

Monitor49"50"55"65"75"85"98"
Mount TypeFloor Mounting: Should be anchored to the surface through the connection holes on the base flange.
Base FeetsNo
Base WheelsNo
Tempered Glass4 mm Extra Clear Ceramic Painted Tempered Glass
Touch ScreenOptional: PCAP TouchNo
Ventilation Fans2 x 120x120 mm fans for hot air exhaust4 x 120x120 mm fans for hot air exhaust
Power Control3-Outlet Surge-Protected Switched PDU
Lockable Cover(s)Back Covers with Dual-Point Locking Mechanism
Body MaterialsAluminum Profile Chasis, Galvanized steel and carbon steel.
CoatingElectrostatic powder coating
Custom ColorCan be produced for orders of 20 units or more, or upon request for special projects.
Client LogoCan be produced for orders of 20 units or more, or upon request for special projects.
