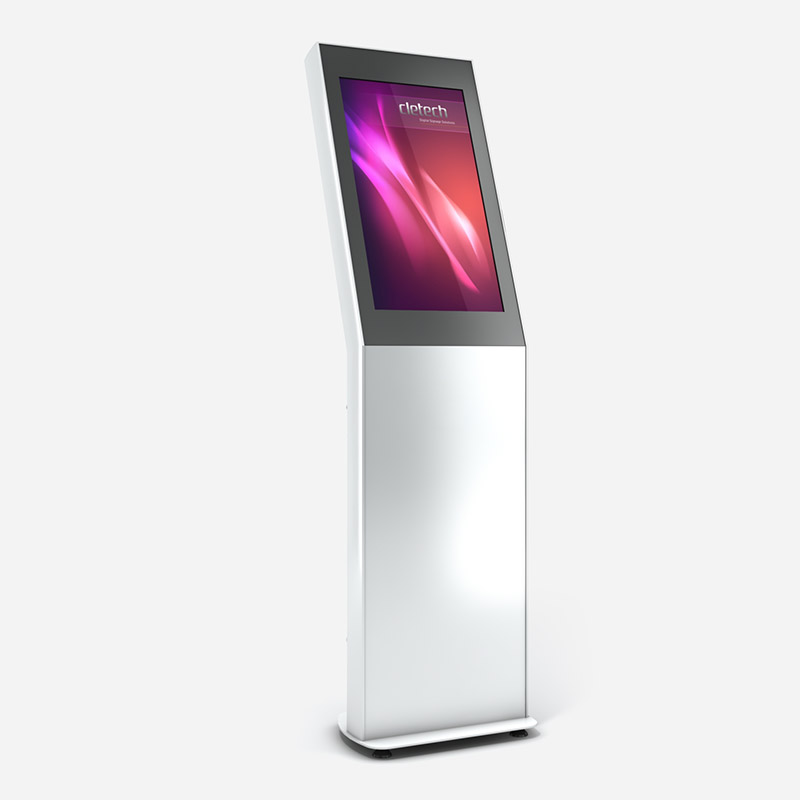

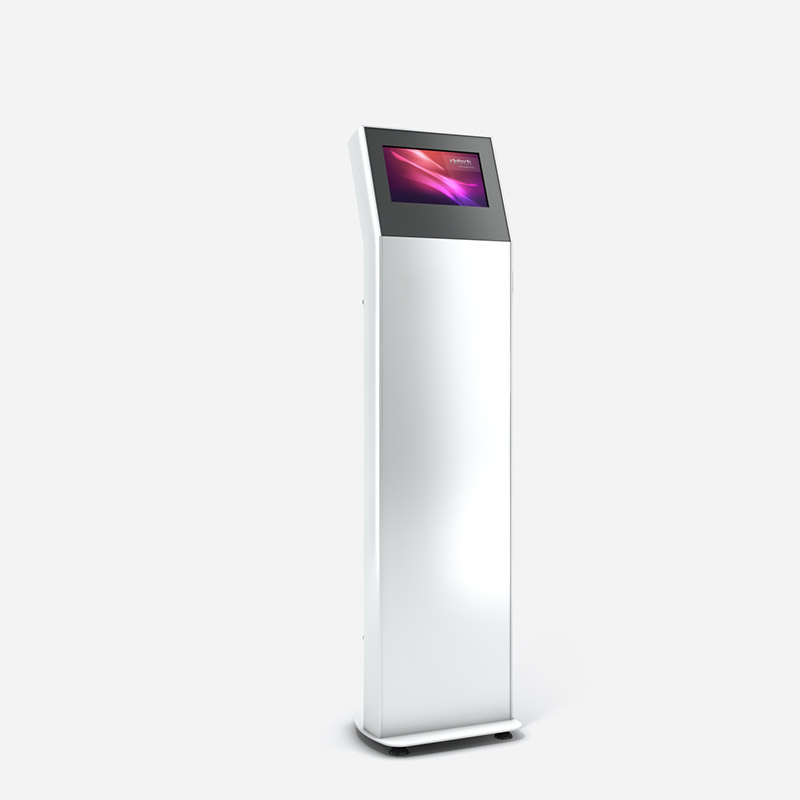

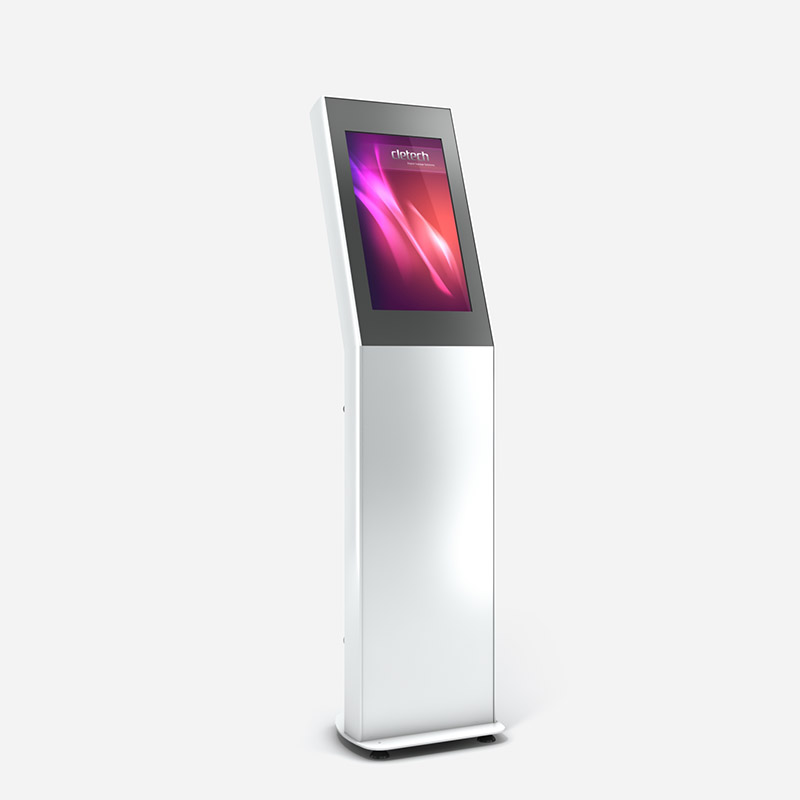

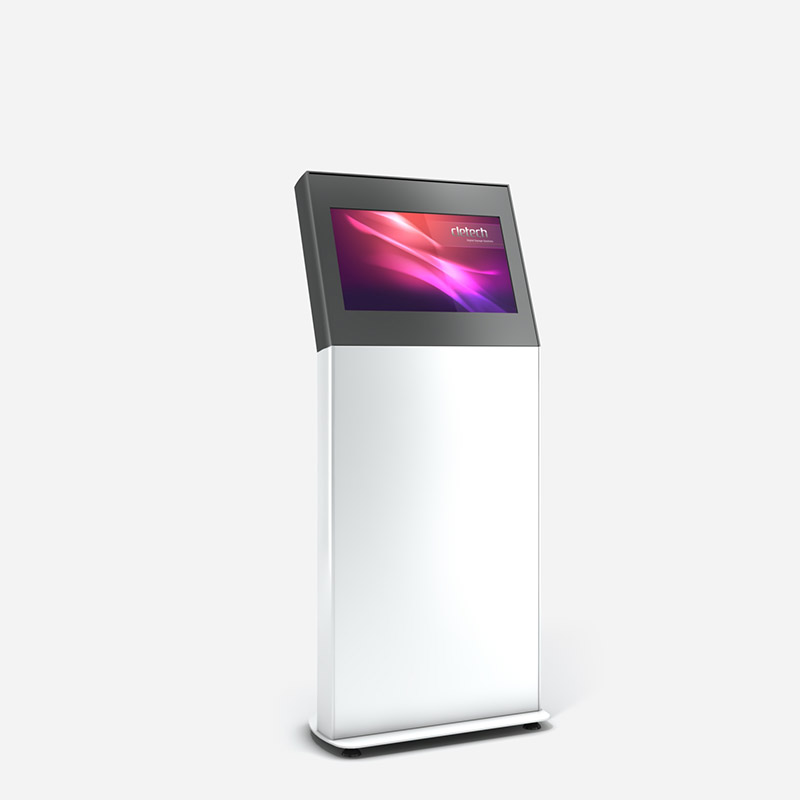

ZS Single Sided Digital Signage Indoor Self-Service Kiosk Enclosure

OrientationPortrait, Landscape

ConfigurationSingle Sided

Product FamilyZ Series

Touchfor Touch Monitor, No Touch

Color OptionsWhite, Silver, Black, Anthracite

Display Size:

Orientation:

Versatile, Sleek, and Custom-Built for Any Indoor Self-Service Need

Designed for indoor self-service applications, the Cletech ZS Single Sided Indoor Self-Service Kiosk Enclosure combines elegant design with top-tier functionality. Built using a custom-designed 100 mm aluminum profile frame with integrated air channels, this kiosk enclosure offers a slim and refined look that blends seamlessly into any modern environment. With compatibility for 10" to 32" professional touchscreen monitors from various brands, it supports both vertical and horizontal mounting options, thanks to its VESA-compliant mounting holes.

The frameless front panel is tailored specifically for touch-integrated screens, offering direct interaction without an additional glass layer. Passive ventilation slots on the rear panel ensure reliable air circulation, while an optional fan enhances cooling when needed. The enclosure is finished with RAL standard electrostatic powder paint, ensuring durability and custom color flexibility for unique projects. Its concealed hinge and lockable rear panel enable easy servicing, while internal cable management ensures a clean and professional installation.

Adaptable Hardware Integration and Smart Service Access

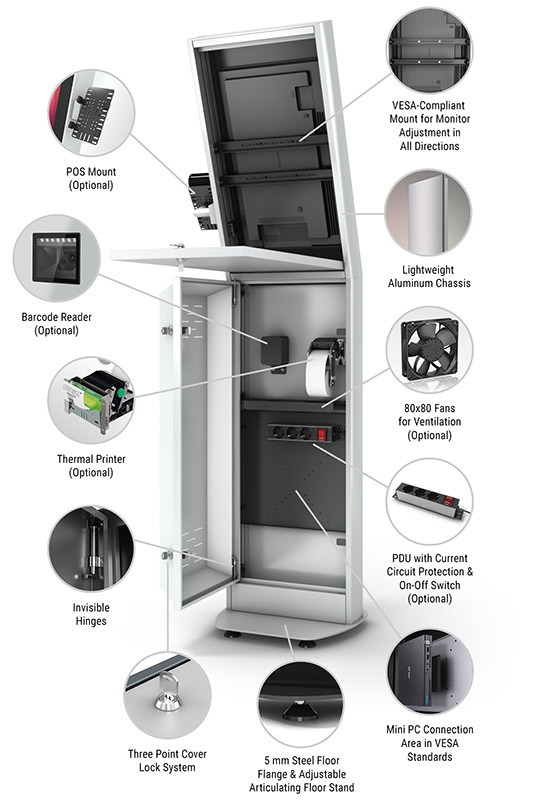

Beyond aesthetics, the Cletech ZS enclosure is engineered for true versatility. Internally, it features a dedicated space with VESA-standard mounting holes for mini PCs or media players, along with a built-in 3-socket surge-protected and switch-controlled PDU for safe and effective power distribution. The base includes adjustable swivel feet under the flange to ensure perfect stability on uneven surfaces.

Need additional functionality? This kiosk can be upgraded with POS devices, thermal printers, barcode scanners, or contactless card readers, making it suitable for a wide range of industries and applications. Its modularity means you can integrate equipment from different brands, giving you complete freedom in configuring your solution. When you’re designing a self-service system tailored to your specific project needs, the Cletech ZS enclosure is your unmatched customizable partner—streamlining form and function into one cohesive solution.

Smart. Sleek. Scalable.

Every detail engineered to elevate your self-service experience.

Feature Highlights

Expandable Hardware Integration

Integrate POS, printers, scanners, and more—all in a single unified kiosk body.

Concealed Access & Easy Service

Lockable back doors with hidden hinges and segmented access for faster maintenance.

Custom Finish Options

Electrostatic powder coat in RAL colors, with custom project color options available.

Flexible Monitor Compatibility

Supports 10"–32" touchscreen monitors from all major professional brands.

VESA-Compliant Mounting

Compatible with both vertical and horizontal installations for ultimate adaptability.

Passive Cooling System

Back panel ventilation keeps internal components safe; optional fan available.

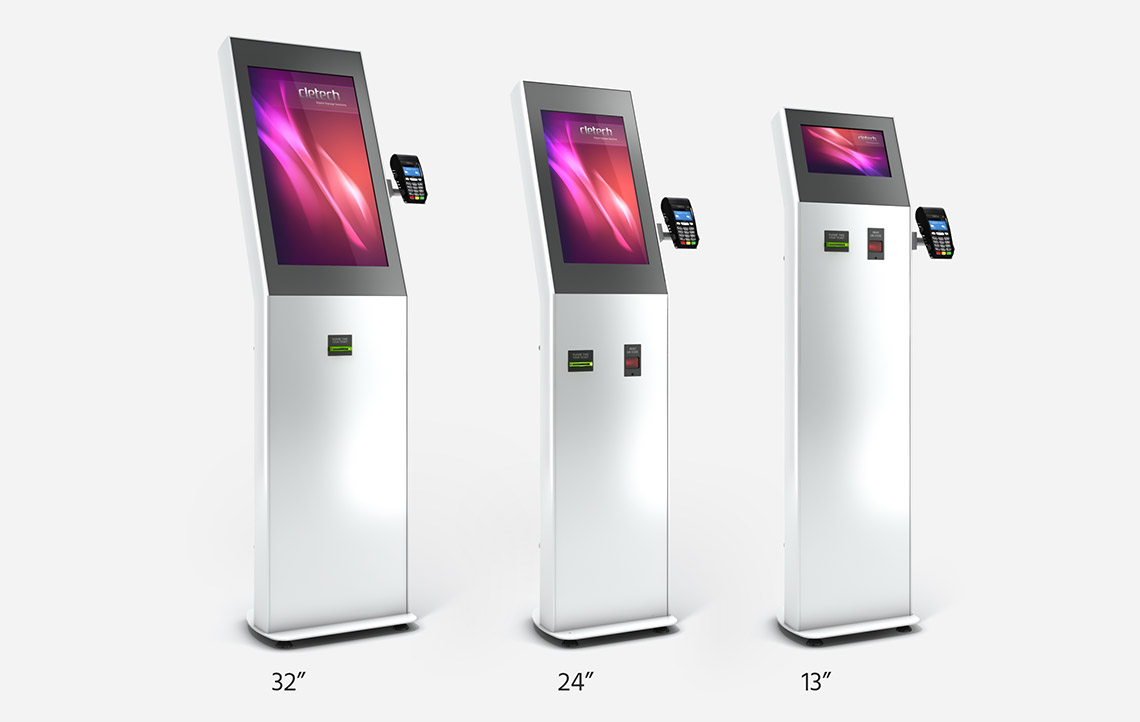

Monitor	10"	13"	22"	24"	27"	32"
Mount Type	Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange.
Base Feets	4 x Articulated, height-adjustable feet
Base Wheels	No
Tempered Glass	No
Touch Screen	No
Ventilation Fans	Optional: 2 x Inlet Fans (80x80 mm)
Power Control	3-Outlet Surge-Protected Switched PDU
Lockable Cover(s)	Backcovers with locking mechanism
Body Materials	Aluminum Profile Front Cover, Galvanized steel and carbon steel
Coating	Electrostatic powder coating
Custom Color	Can be produced for orders of 20 units or more, or upon request for special projects.
Client Logo	Can be produced for orders of 20 units or more, or upon request for special projects.
Options	Printer POS Mount Barcode Reader
