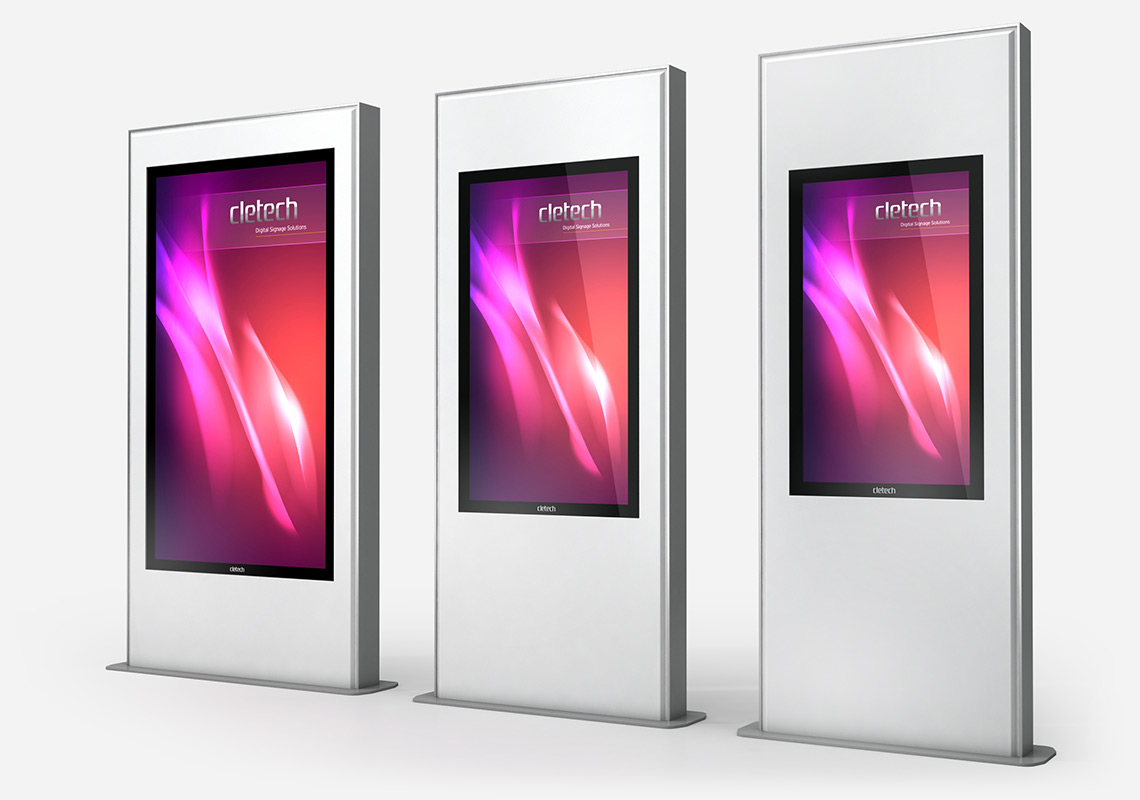

F9 Single Sided Digital Signage Outdoor Totem Enclosure
Built for Outdoor Excellence
The Cletech F9 Single Sided Digital Signage Outdoor Totem Enclosure is a robust and versatile solution, designed to support high brightness monitors from 43" up to 75". Compatible with most leading monitor brands, it delivers superior display visibility in challenging environments. Engineered specifically for vertical orientation, the F9 enclosure thrives in outdoor conditions with full protection against dust, rain, snow, extreme temperatures, and humidity. Its IP56 rating and vandal-resistant construction ensure durability in public or high-traffic areas. Whether for advertising, wayfinding, or information sharing, this totem enclosure provides consistent performance all year round. Its design reflects modern outdoor signage standards, offering both high-end security and seamless integration with various technologies.
Smart Engineering, Powerful Protection

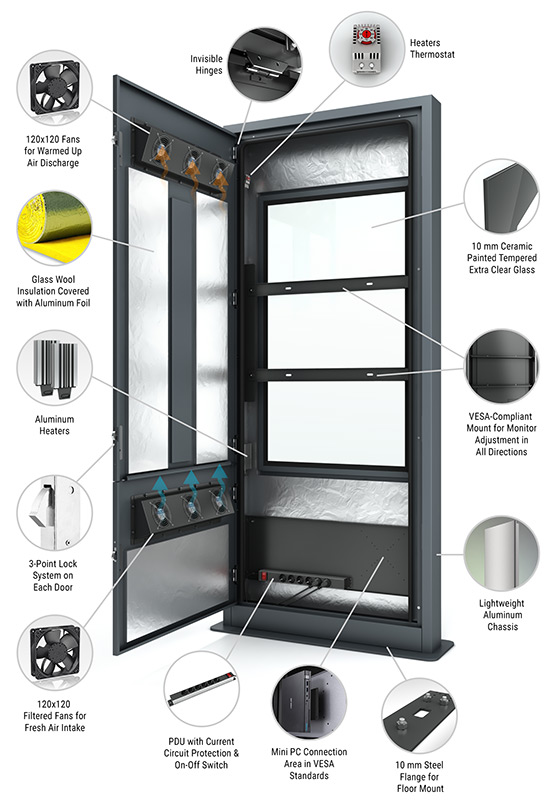

Crafted with an aluminum main frame and galvanized steel body panels, the Cletech F9 is built to last. It features an 8 mm extra-clear ceramic-printed tempered glass front—upgradeable to 4+4 laminated, anti-reflective, IK10-rated glass. Inside, the cabinet is insulated with mineral wool and ventilated using six to eight German-made EBM-Papst fans, with optional tangential air curtain fans for extra cooling. A thermostat-controlled aluminum panel heater ensures optimal temperature regulation. The enclosure comes standard with a surge-protected 6–8 input PDU and VESA-compatible mounts for both monitors and Mini PCs. Optional PCAP touch integration supports up to 40 simultaneous touchpoints, turning the F9 into an interactive powerhouse for any outdoor application.
Next-Level Outdoor Protection
Built for high-brightness monitors and engineered to withstand the harshest outdoor conditions.
Key Features at a Glance
Wide Monitor Compatibility
Supports 43"–75" high-brightness monitors from various leading brands.
Full Outdoor Protection
IP56 certified and resistant to dust, rain, snow, extreme temperatures, and humidity.
Vandal-Resistant Glass Options
Comes standard with 8 mm tempered glass; IK10, anti-reflective options available.
Optimized Thermal Management
German EBM-Papst fans and thermostat-controlled heaters maintain ideal internal climate.
Durable Build Quality
Aluminum chassis with galvanized steel body and outdoor-grade powder coating.
Interactive Touch Option
Optional PCAP touchscreen supports up to 40 touch points for user engagement.
| Monitor | 43" | 46" | 49" | 50" | 55" | 65" | 75" |
|---|---|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||||||
| Base Feets | No | ||||||
| Base Wheels | No | ||||||
| Tempered Glass | 8 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | ||||||
| Touch Screen | Optional PCAP Touch | ||||||
| Ventilation Fans | Equipped with 3 x EBM-Papst (120x120 mm) fans for fresh air intake and 3 x EBM-Papst (120x120 mm) fans for hot air exhaust. | Equipped with 4 x EBM-Papst (120x120 mm) fans for fresh air intake and 4 x EBM-Papst (120x120 mm) fans for hot air exhaust. | |||||
| Power Control | 6-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | Back Doors with Dual-Point Locking Mechanism | ||||||
| Body Materials | Aluminum Main Chasis, Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Options | 4+4 IK10 Anti-Reflective Tempered Glass Tangential Fans for Air Curtain UV Protection Film | ||||||
