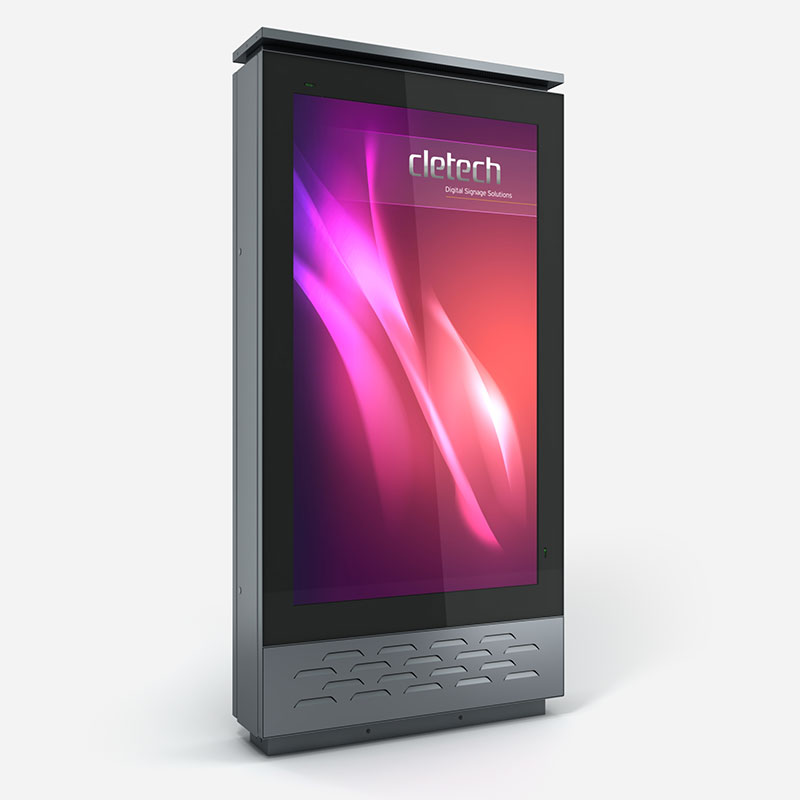

L1 Outdoor Totem Enclosure for LED Technology

The Cletech L1 Outdoor Totem Enclosure for LED Displays delivers a robust, future-ready solution for businesses seeking a high-performance outdoor signage experience. Designed to accommodate 79" and 88" LED panels, this enclosure supports both IP-rated and non-IP-rated LED screens, making it exceptionally versatile. Compatibility should be confirmed during the order process with a sales representative to ensure seamless integration. The structure is engineered with a fully reinforced body made from galvanized and carbon steel, built to endure the most demanding environmental conditions. Its zinc-based primer underlayer and RAL-standard electrostatic powder coating not only enhance visual appeal but also ensure long-term resistance to corrosion and weathering.

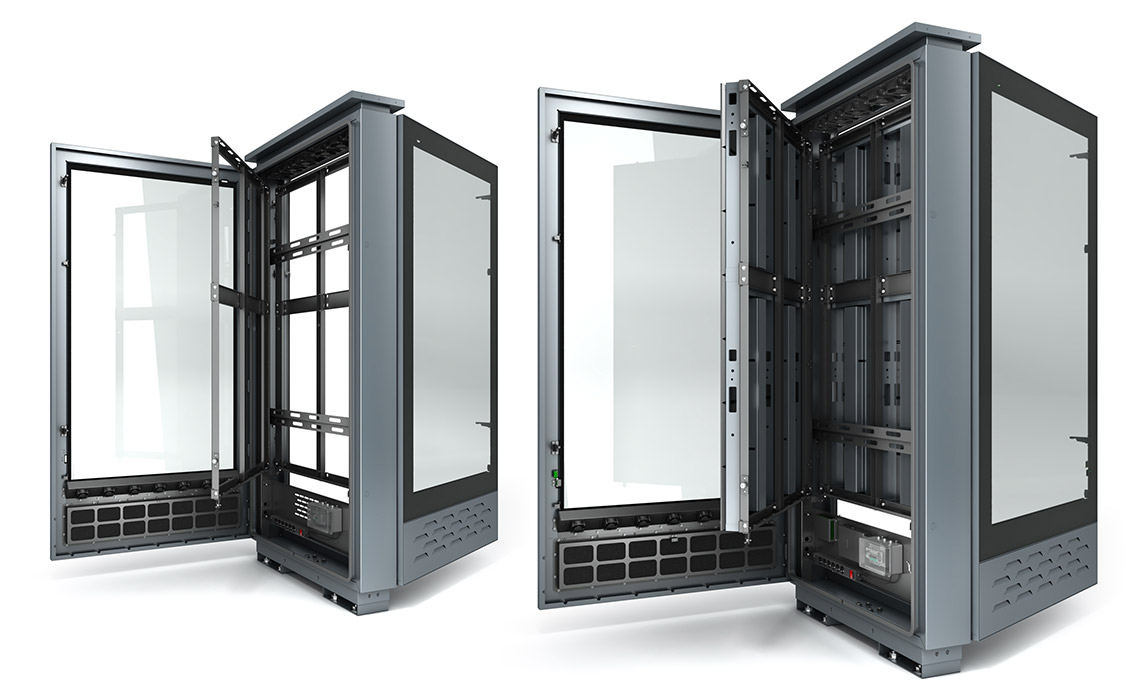

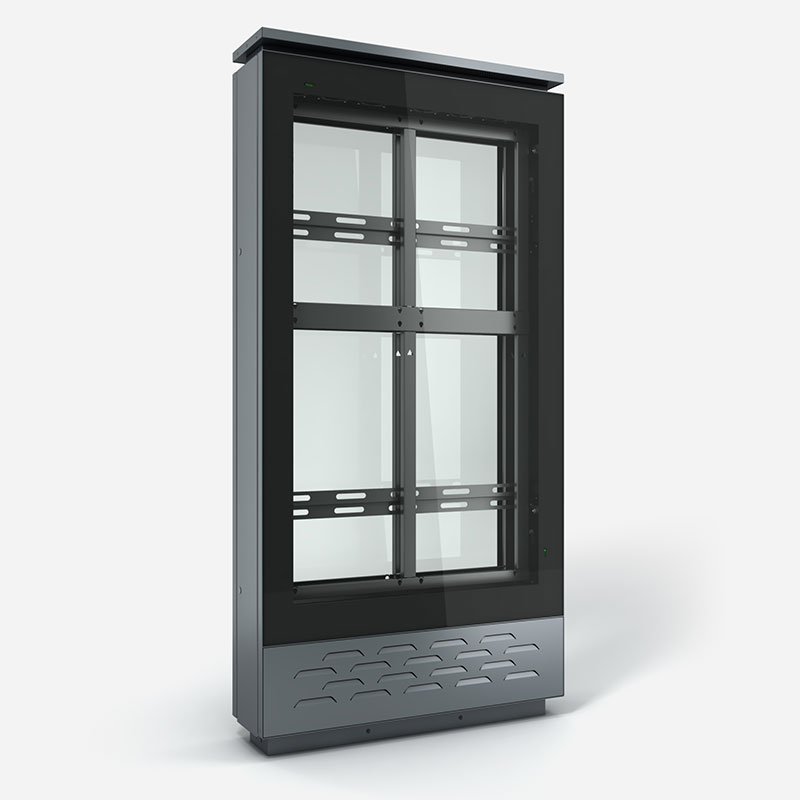

For enhanced protection, the front face of the unit comes standard with 8 mm ultra-clear ceramic printed tempered glass, with an optional anti-reflective IK10-rated 4+4 laminated glass available. This thoughtful design ensures clarity without compromising on durability or safety. Internally, the mounting structure is tailored for vertical orientation, with adjustable hanging components and an accessible eyebolt system for lifting and installation. Whether single-sided or double-sided, the smart door mechanisms—side-opening for easy service—offer added practicality for installation and maintenance crews.

Beyond its durable construction, the Cletech L1 enclosure incorporates a high-efficiency cooling system, using six 120x120 mm EBM-PAPST fans to maintain optimal internal conditions. Additionally, an air curtain fan strategically circulates air across the front of the screen, ensuring effective heat management and preventing overheating even in direct sunlight. This precision airflow system extends the lifespan of internal components and ensures consistent performance regardless of the weather.

The interior layout of the enclosure has been carefully designed to include dedicated compartments for LED controllers and mini PCs, while a custom power distribution unit (PDU) with surge protection and master switch enhances electrical safety. Designed with both installers and operators in mind, the Cletech L1 ensures performance, security, and convenience in every detail.
