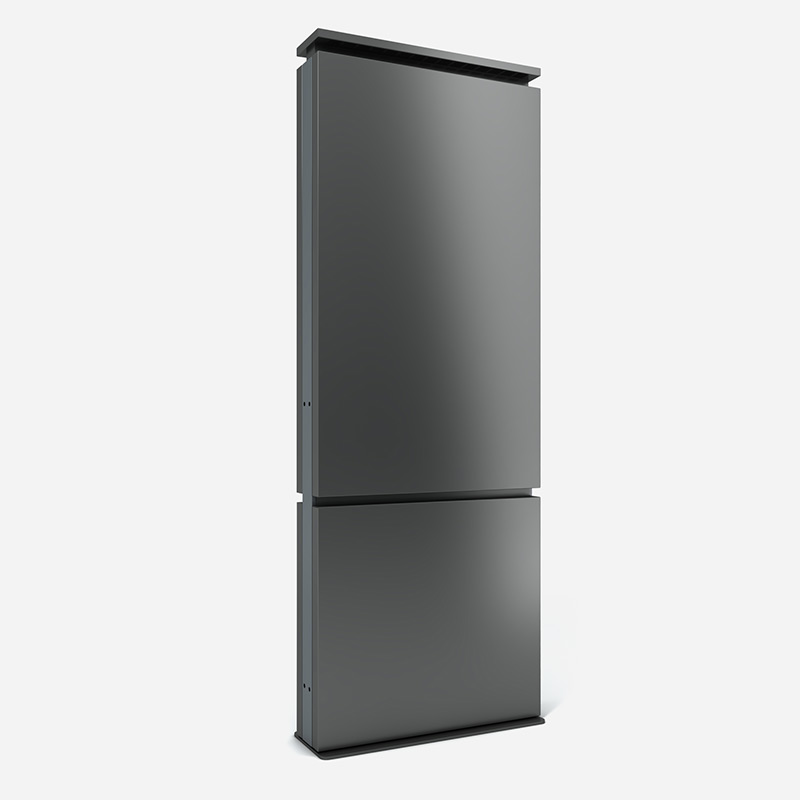

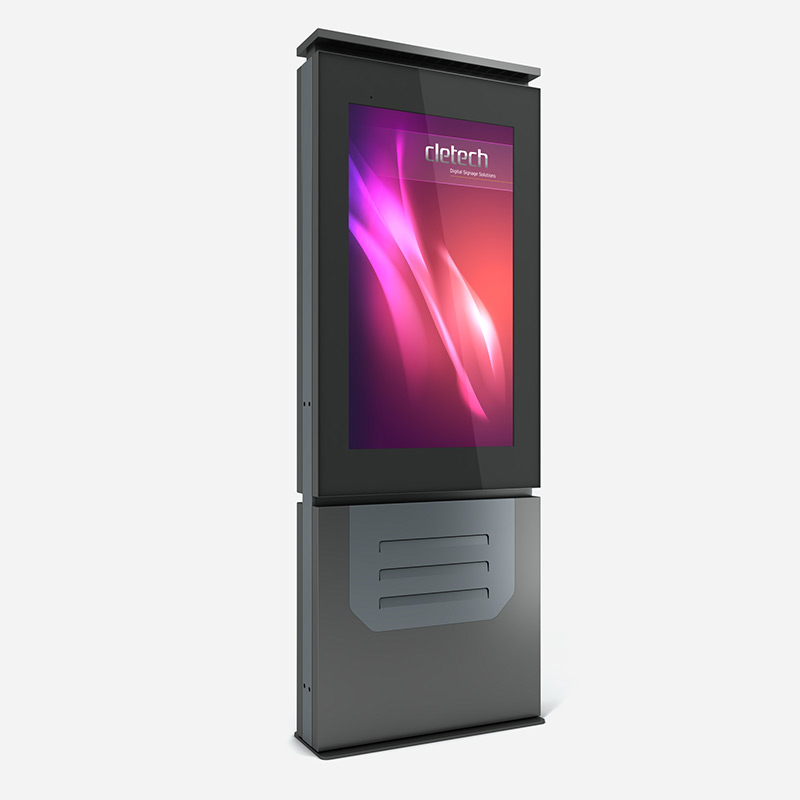

RS Single Sided Digital Signage Outdoor Totem Enclosure
Built for the Toughest Outdoor Conditions
The Cletech RS Single Sided Digital Signage Outdoor Totem Enclosure is purpose-built to endure the most demanding environmental conditions. Designed to support high-brightness monitors ranging from 46" to 75", this enclosure ensures your display is both protected and prominent. Its compatibility with a wide range of display brands and vertical orientation makes it a versatile choice for urban landscapes, transportation hubs, and public spaces.
Certified with IP65 protection, it defends against rain, snow, dust, humidity, extreme temperatures, and even vandalism. Its robust structure includes a 10mm extra clear ceramic printed tempered glass front panel, with optional upgrades such as anti-reflective laminated glass rated up to IK10. Internally, German-made ebm-papst fans and a tangential air curtain ensure optimal airflow and thermal regulation, supported by a thermostat-controlled aluminum panel heater. This totem is more than a housing—it's a high-performance shield for your outdoor digital signage.
Engineered for Performance and Serviceability
The Cletech RS Outdoor Totem Enclosure combines smart engineering with rugged durability to deliver optimal display performance. Built with an aluminum profile chassis featuring integrated air channels and galvanized steel body panels, the enclosure is finished with a zinc-rich primer and durable electrostatic powder coating for long-term resistance against corrosion. Optional KTL (cataphoretic) coating adds further protection for extreme environments.

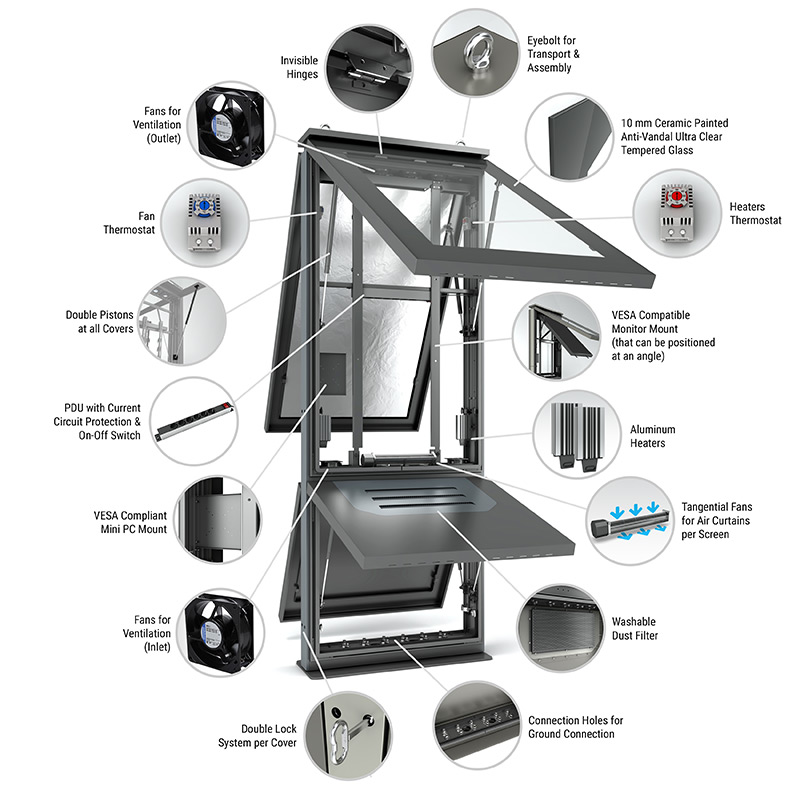

Designed with serviceability in mind, the VESA-compliant display mount can tilt into a service mode, making maintenance efficient and safe. A dedicated mount is also included for Mini PCs. Power distribution is handled by a surge-protected and switchable 6-8 port PDU. Hidden key entries, dual-point locking hinged doors with gas pistons, and two removable eyebolts simplify installation and enhance security. Optional 40-point PCAP touch support expands interactivity, making this totem ideal for transit stops, smart city installations, and public digital engagement.
Tough. Smart. Outdoor Ready.
All-weather protection and seamless integration for your digital signage.
Key Features at a Glance
Wide Monitor Compatibility
Supports 46" to 75" high-brightness monitors from multiple global brands.
IP65 & Vandal Resistance
Fully sealed against water, dust, and impacts, with reinforced security features.
Active Thermal Management
Equipped with high-quality fans and a thermostat-controlled heater for climate control.
Technician-Friendly Design
Serviceable brackets and accessible mounting allow quick and safe maintenance.
Optional PCAP Touch
Available with up to 40-point touch functionality for interactive installations.
Urban Integration Ready
Compatible with smart city furniture and perfect for transit and public areas.
| Monitor | 46" | 49" | 55" | 65" | 75" |
|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | ||||
| Base Feets | No | ||||
| Base Wheels | No | ||||
| Tempered Glass | 10 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | ||||
| Touch Screen | Optional PCAP Touch | ||||
| Ventilation Fans | Equipped with 2 x EBM-Papst (120x120 mm) fans for fresh air intake and 4 x EBM-Papst (120x120 mm) fans for hot air exhaust, 1 x Tangential Fans for Air Curtain | Equipped with 2 x EBM-Papst (120x120 mm) fans for fresh air intake and 6 x EBM-Papst (120x120 mm) fans for hot air exhaust, 1 x Tangential Fans for Air Curtain | |||
| Power Control | 8-Outlet Surge-Protected Switched PDU | ||||
| Lockable Cover(s) | All Doors with Dual-Point Locking Mechanism | ||||
| Body Materials | Aluminum Main Chasis, Galvanized steel and carbon steel. | ||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Options | 4+4 IK10 Anti-Reflective Tempered Glass Heater with Thermostat UV Protection Film | ||||
