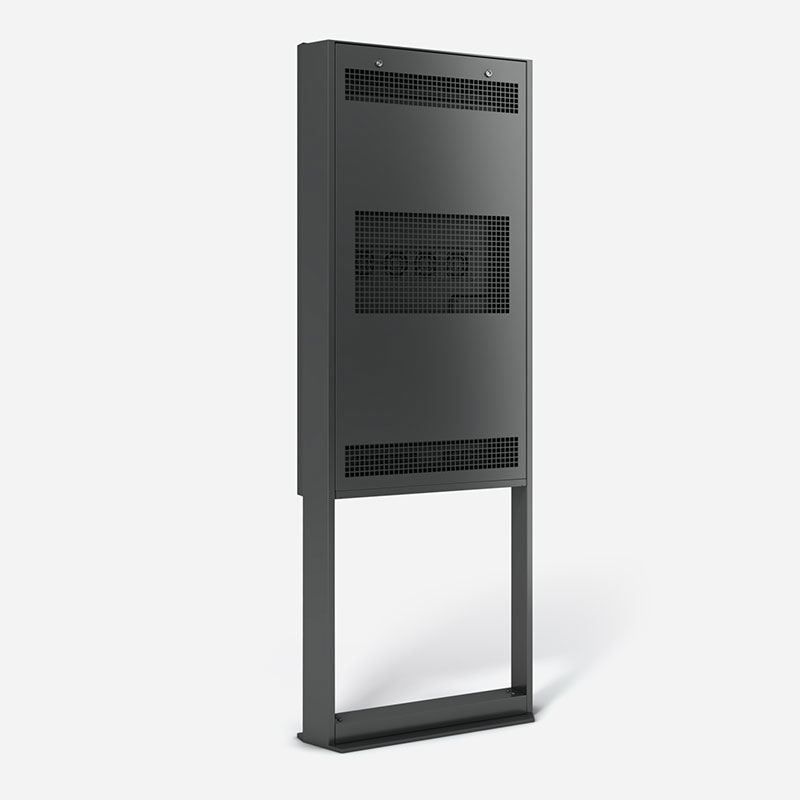

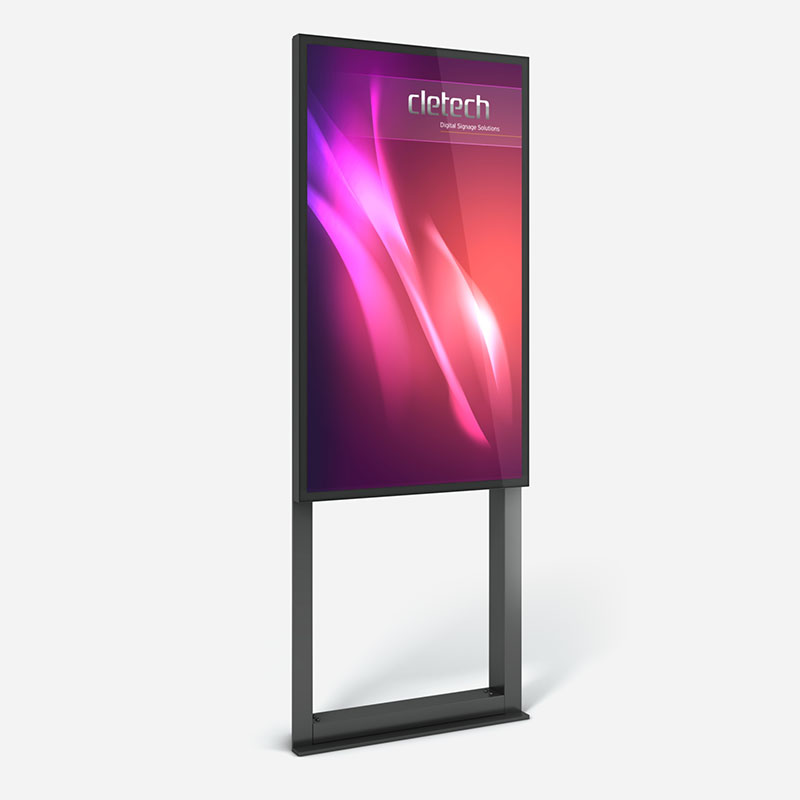

A2 Single Sided Digital Signage Outdoor Totem Enclosure
Designed for Outdoor Performance
Developed to ensure reliable digital communication in open-air environments, this outdoor totem enclosure delivers a solid solution for professional signage projects. Its structure supports multiple screen sizes, allowing seamless integration into various applications. Portrait and landscape orientation options add flexibility to content planning, while the internal access design simplifies installation and maintenance. The rear-positioned support legs ensure a clean front appearance, creating a modern and minimal visual impact.
Structural Reliability with a Refined Finish
The main load-bearing structure is built from aluminum profiles and reinforced with galvanized and carbon steel components, ensuring long-term durability. The enclosure is coated with a zinc-rich primer followed by electrostatic powder coating for superior resistance to outdoor conditions. Standard RAL color options allow project-based customization, while cataphoresis coating is available as an alternative. The ventilation system is engineered in full compliance with outdoor monitor manufacturers' technical requirements, delivering reliable performance in continuous outdoor use.
Features & Technical Details
Engineered to provide durability, compatibility, and a refined appearance for outdoor digital signage applications.
Key Functional Highlights & Colors
Multi Screen Adaptability
Compatible with screens from 46" to 75", making it suitable for a wide range of projects.

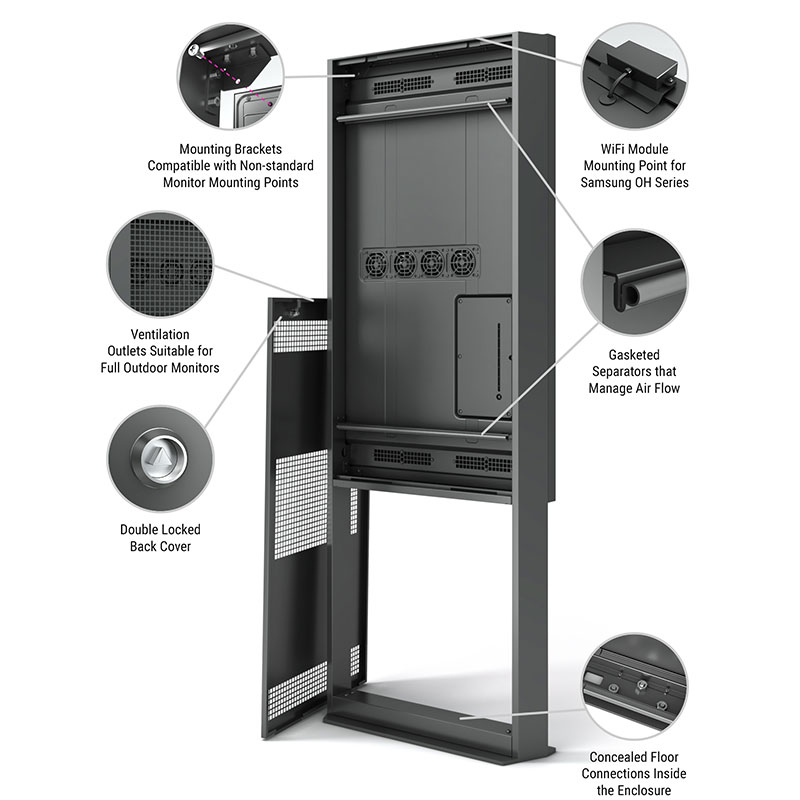

Service-Friendly Design
Internal access structure accelerates installation and maintenance processes.
Advanced Ventilation
Airflow designed to fully comply with monitor manufacturers' technical standards.
Robust Construction
Aluminum main chassis combined with steel elements ensures maximum protection from external impacts.
Project-Based Color Customization
RAL color options allow customization to match corporate identity.
Flexible Orientation
Available in both portrait and landscape configurations.
| Monitor | 46" | 49" | 55" | 75" |
|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange | |||
| Base Feets | No | |||
| Base Wheels | No | |||
| Tempered Glass | No | |||
| Touch Screen | No | |||
| Ventilation Fans | No | |||
| Power Control | No | |||
| Lockable Cover(s) | Double Lock per Cover | |||
| Body Materials | Aluminum, Galvanized steel and carbon steel. | |||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | |||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | |||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | |||
