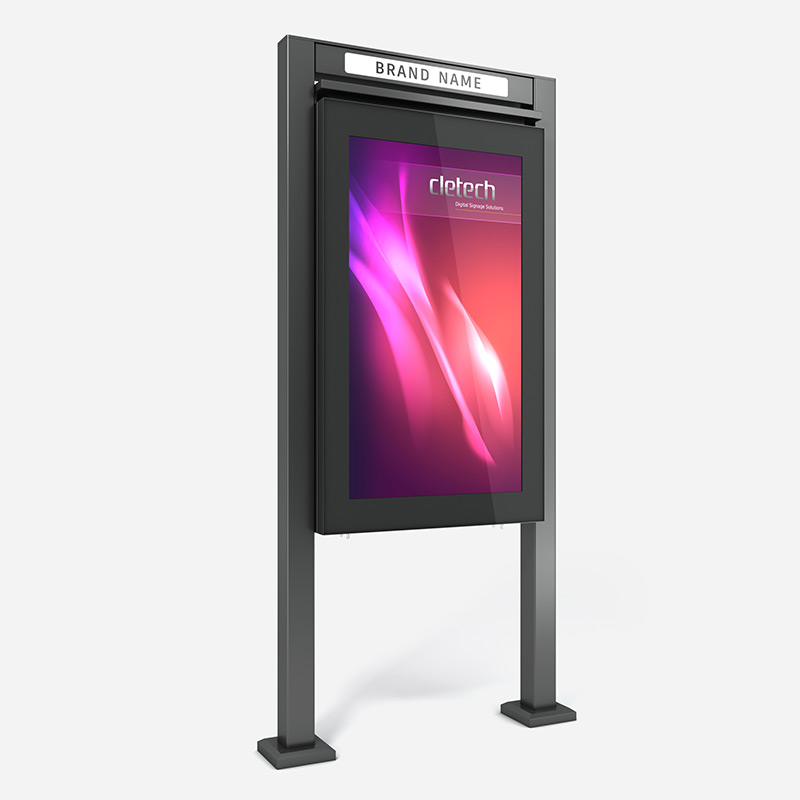

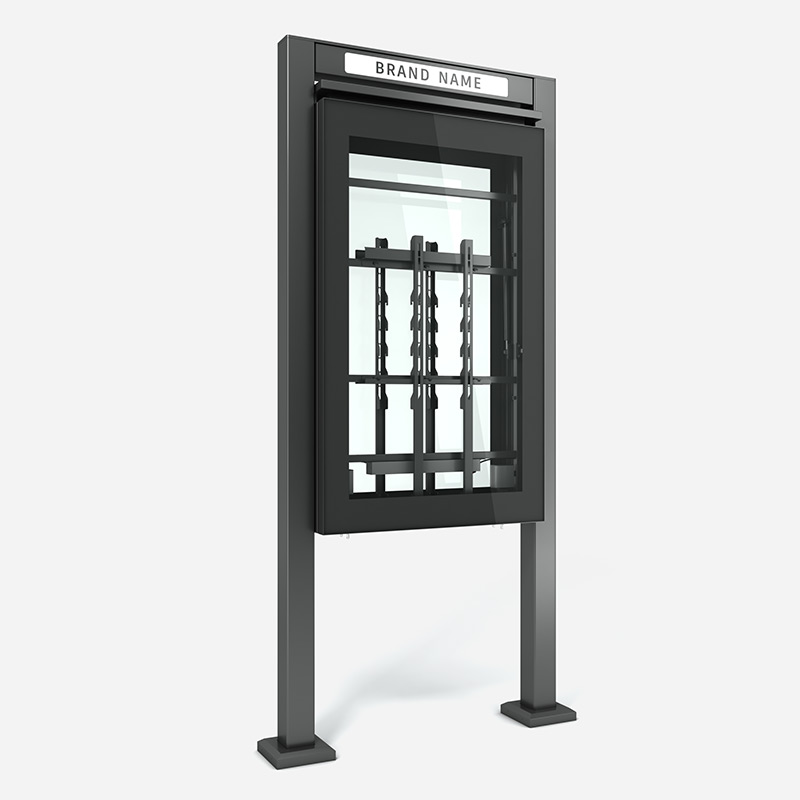

M5D Double Sided Digital Signage Outdoor Totem Enclosure
Engineered for All-Weather Outdoor Performance
The Cletech M5D Double Sided Outdoor Totem Enclosure is expertly designed for reliable 24/7 operation in demanding outdoor environments. Compatible with high-brightness monitors ranging from 43" to 75", it supports both landscape and portrait orientations, ensuring flexibility for various use cases. The IP56-rated enclosure is resistant to dust, heavy rain, snow, extreme heat, cold, and humidity. Its vandal-proof structure includes an 8 mm extra clear ceramic printed tempered glass front as standard, with optional 4+4 laminated, anti-reflective, and IK10-rated safety glass available. The galvanized steel body is coated with a zinc-based primer and UV-resistant powder paint, offering exceptional durability. For enhanced protection, a cataphoretic coating option is also available. The interior is insulated with mineral wool and ventilated by 4 to 6 high-efficiency German-made ebm-papst fans. A tangential air curtain fan can also be added for cooling the monitor-glass interface.
Smart Integration with High Compatibility and Customization
Designed for versatility and ease of integration, the Cletech M5D enclosure supports a wide range of professional display brands and VESA-compatible mounting systems. A dedicated VESA bracket is also available for mounting a Mini PC inside the unit. Power distribution is safely managed via a built-in 6-8 outlet PDU with surge protection and a main switch, ensuring safe and stable operation of all components. The enclosure can optionally be equipped with a 40-point PCAP touch screen, enabling interactive applications in any weather condition. Whether deployed in transportation hubs, city centers, or commercial zones, the M5D delivers superior performance, durability, and aesthetic appeal. Its modular design and customizable features make it an ideal choice for integrators seeking a dependable digital signage solution in public outdoor spaces.

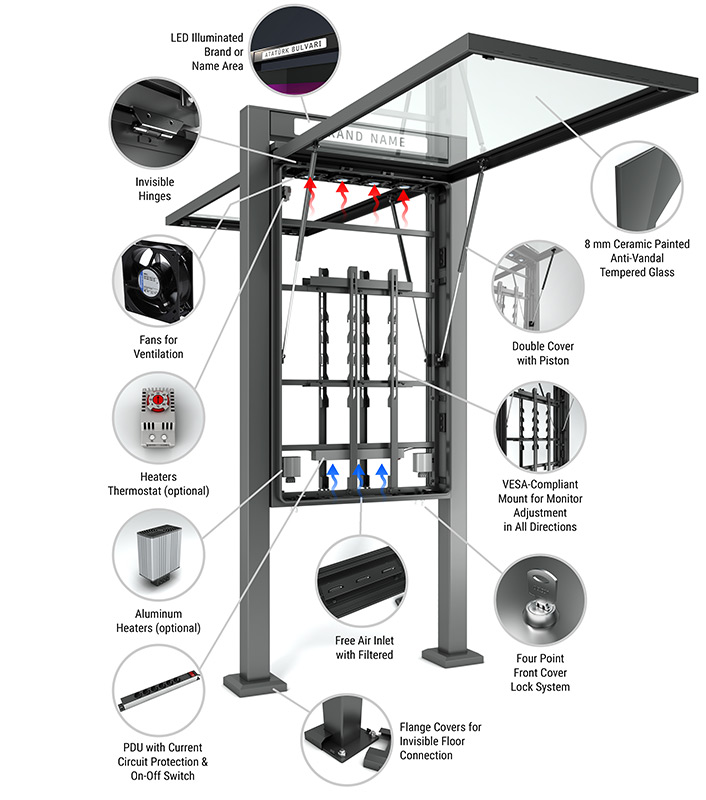

Robust Design, Smart Details
Every element is engineered to ensure reliable outdoor performance and seamless integration.
Key Features at a Glance
Wide Monitor Compatibility
Supports 43" to 75" high-brightness displays from various leading brands.
Dual Orientation Options
Available in both portrait and landscape configurations to suit different needs.
All-Weather Protection
IP56-rated enclosure resists rain, dust, snow, humidity, and extreme temperatures.
Durable Safety Glass
Comes standard with 8 mm tempered glass, with optional IK10 and anti-reflective upgrades.
Efficient Cooling System
Equipped with German-made ebm-papst fans and optional tangential air curtain fan.
Smart Interior Design
Includes surge-protected PDU, VESA mounts for monitors and Mini PC, and thermal insulation.
| Monitor | 43" | 46" | 49" | 50" | 55" | 65" | 75" |
|---|---|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flanges beneath both feet. | ||||||
| Base Feets | No | ||||||
| Base Wheels | No | ||||||
| Tempered Glass | 8 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | ||||||
| Touch Screen | Optional PCAP Touch | ||||||
| Ventilation Fans | 4 x EBM-Papst Fans (120x120 mm) with High Airflow Exhaust Capability | 6 x EBM-Papst Fans (120x120 mm) with High Airflow Exhaust Capability | |||||
| Power Control | 8-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | Front Door with Dual-Point Locking Mechanism | ||||||
| Body Materials | Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating resistant to outdoor conditions over zinc-based primer. or Electrostatic powder coating resistant to outdoor conditions over cathodic electrodeposition (cataphoretic) coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Options | 4+4 IK10 Anti-Reflective Tempered Glass Tangential Fans for Air Curtain Heater with Thermostat UV Protection Film | ||||||
