XS Single Sided Digital Signage Indoor Kiosk Enclosure
Kiosk enclosure for interactive applications.
A Flexible and Modern Design for Interactive Digital Signage

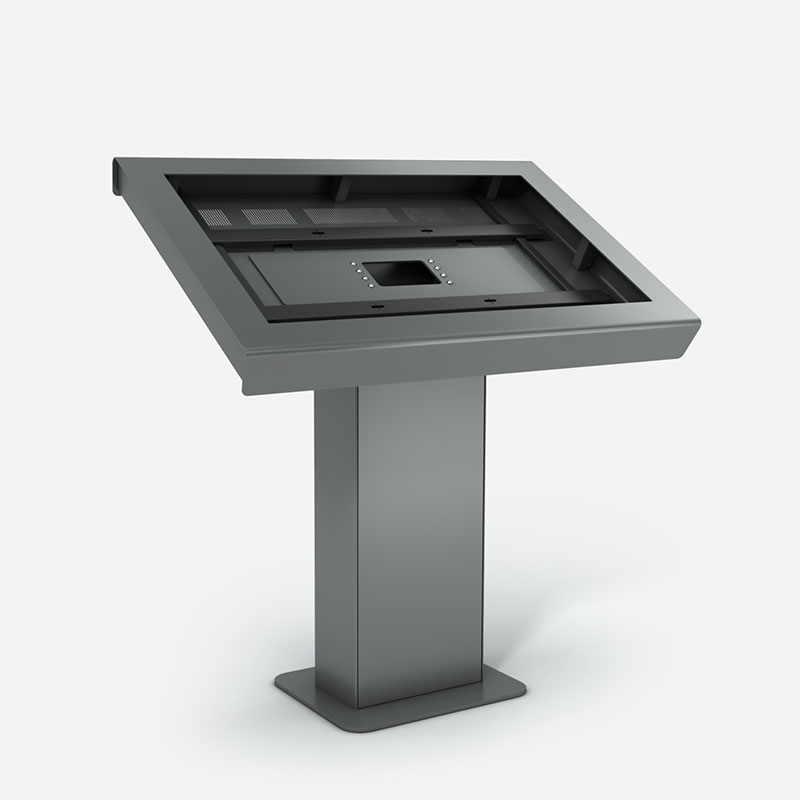

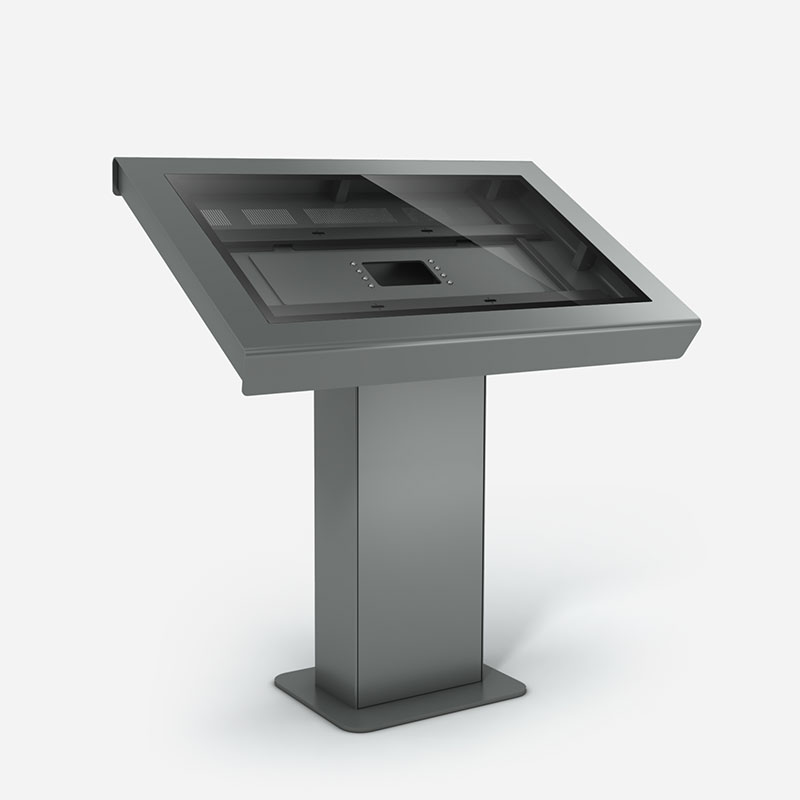

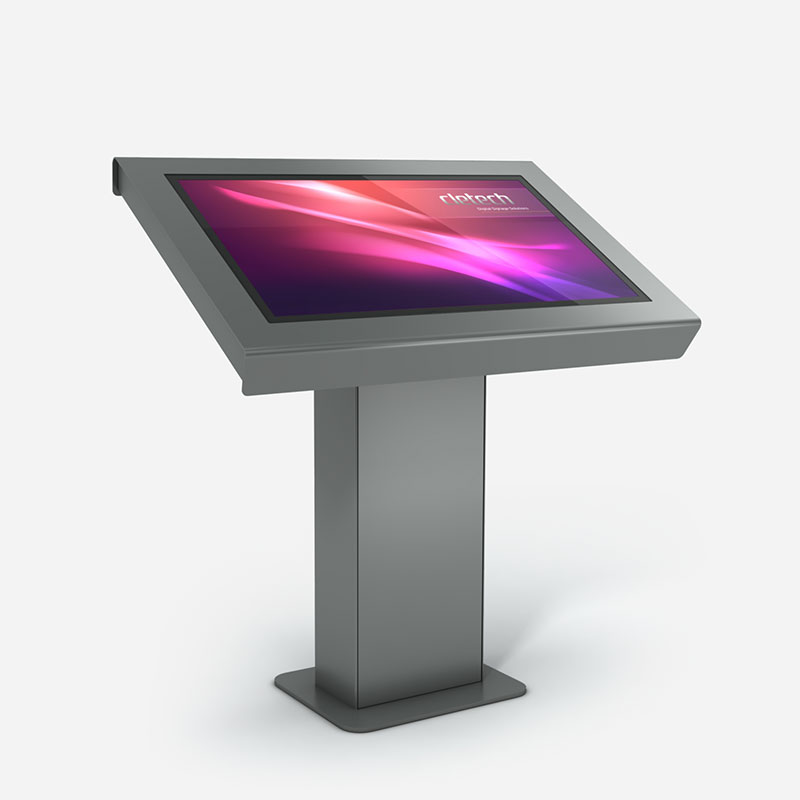

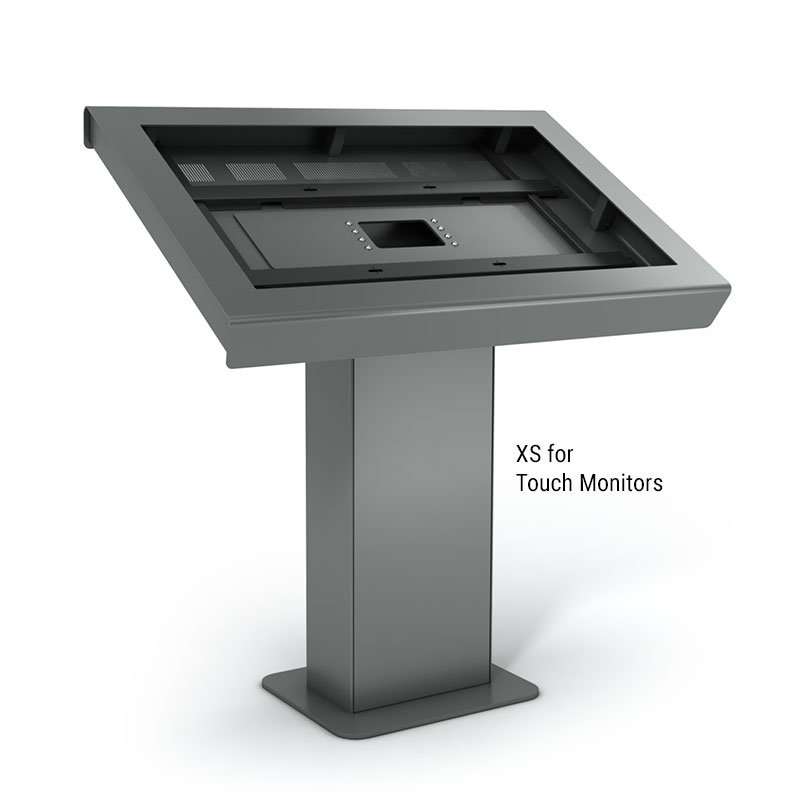

The Cletech XS Single Sided Indoor Kiosk Enclosure is developed as a modern and functional solution for indoor interactive Digital Signage applications. Supporting screen sizes from 32" to 55", it offers seamless compatibility with a wide range of professional monitors. Its single-sided, horizontal mounting structure enhances user interaction while delivering a clean and contemporary appearance. The front surface features a 4 mm ceramic-printed, anti-glare tempered glass equipped with PCAP multi-touch technology, providing smooth and accurate touch performance. By connecting via USB directly to a display or media player, the kiosk can be transformed into an interactive unit within minutes. For projects requiring custom touch solutions, a non-touch glass version is also available, allowing users to integrate their own touch displays.
Robust Construction, Secure Installation and Professional Hardware Integration
The enclosure combines aluminum profile support legs with galvanized and carbon steel components, ensuring durability and long-term structural stability. Passive air intake and exhaust openings positioned on the rear panel enable effective ventilation without the need for active cooling systems. A thick base flange allows the unit to rest securely on the floor and supports optional floor mounting. The back lockable compartment includes VESA-compatible mounting points for a Mini PC or media player. Internal power management is handled by a switchable, surge-protected 3-outlet PDU, ensuring safe and organized operation. Finished with electrostatic powder coating in standard RAL colors, the enclosure can also be customized for specific project requirements. The XS model is ideal for interactive Digital Signage installations such as wayfinding systems, shopping malls, hotel lobbies, corporate environments, exhibitions, and reception areas.
Smart Kiosk Design Enhanced with Intelligent Details
Feature Highlights
Wide Screen Compatibility
Supports professional displays ranging from 43" to 55", allowing seamless integration across various projects.

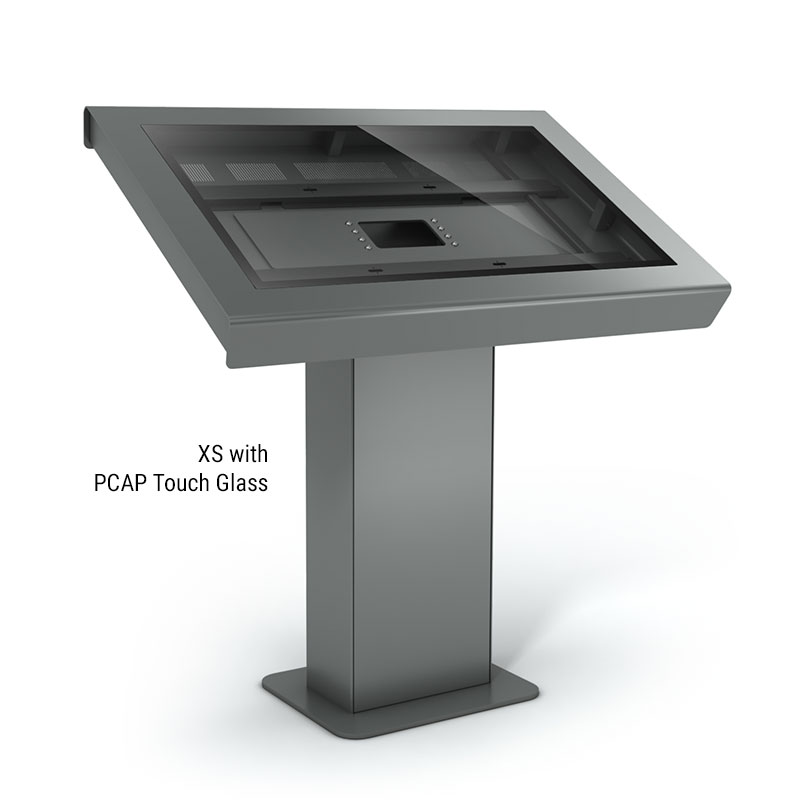

PCAP Multi-Touch Glass
Anti-glare tempered glass with PCAP technology delivers smooth, precise, and responsive touch interaction.
Durable and Long-Lasting Structure
A robust combination of aluminum profiles, galvanized steel, and carbon steel ensures reliability in professional use.

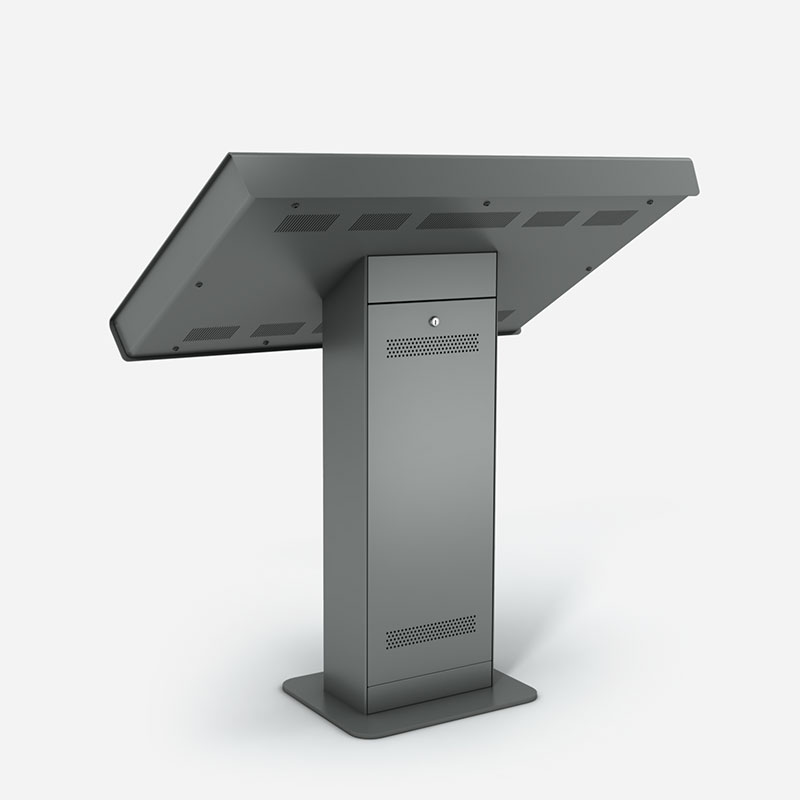

Passive Ventilation System
Rear air intake and exhaust openings provide silent, maintenance-free cooling without active components.

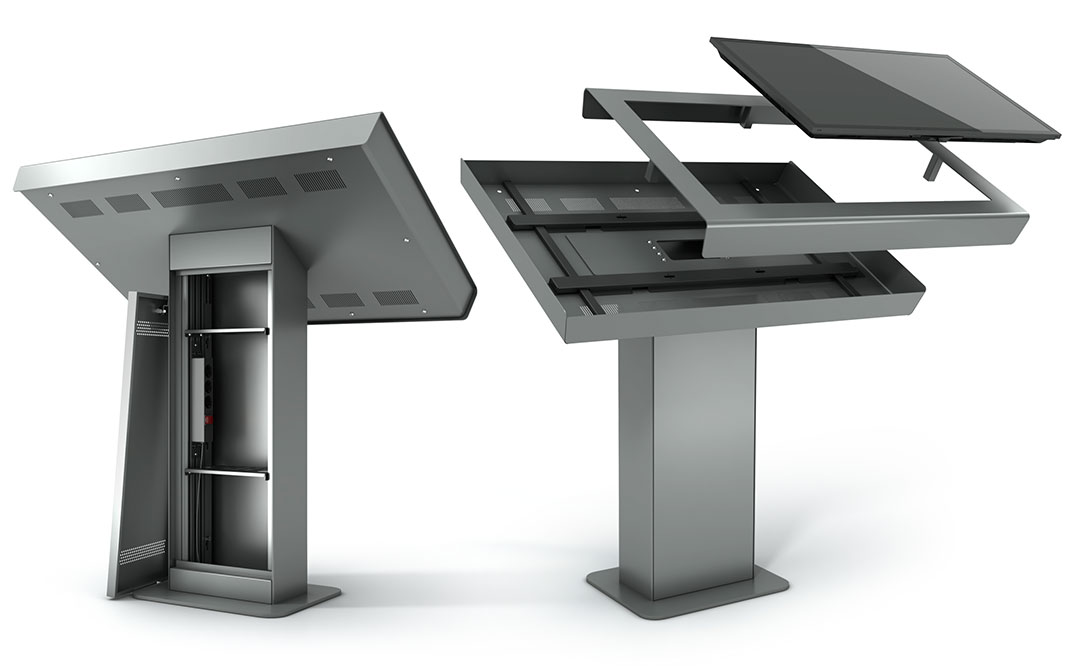

Secure Hardware Compartment
The lockable upper section safely houses a Mini PC or media player with VESA-compatible mounting points.
Flexible Color and Project Options
Electrostatic powder coating in standard RAL colors, with optional custom finishes for special projects.
| Monitor | 32" | 43" | 49" | 50" | 55" |
|---|---|---|---|---|---|
| Mount Type | Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange. | ||||
| Base Feets | No | ||||
| Base Wheels | No | ||||
| Tempered Glass | 4 mm Anti-Glare Ceramic Painted Tempered Glass with PCAP Mesh Touch (Options: without glass for touch monitors) | ||||
| Touch Screen | Metal Mesh PCAP Anti-Glare Touch Glass (up to 10 Point) | ||||
| Ventilation Fans | No | ||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | ||||
| Lockable Cover(s) | Double Lock Bottom Cover | ||||
| Body Materials | Aluminum, Galvanized steel and carbon steel. | ||||
| Coating | Electrostatic powder coating | ||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||
