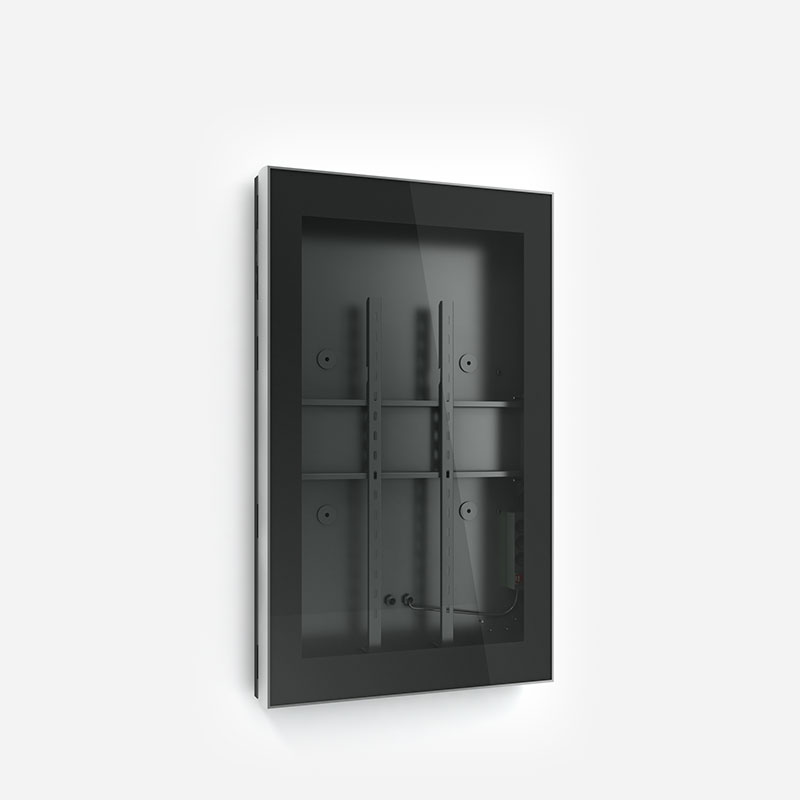

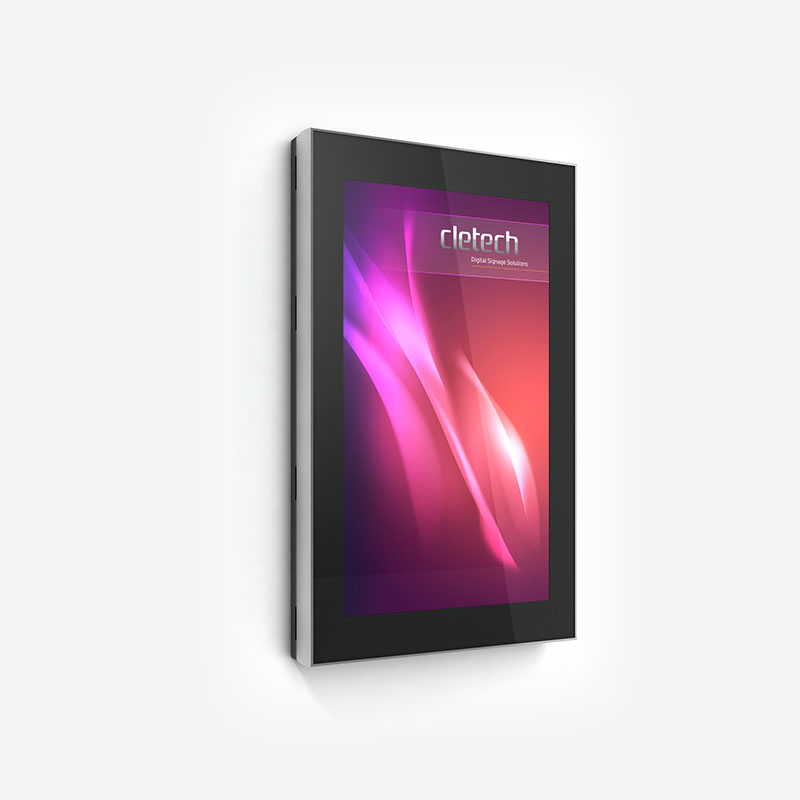

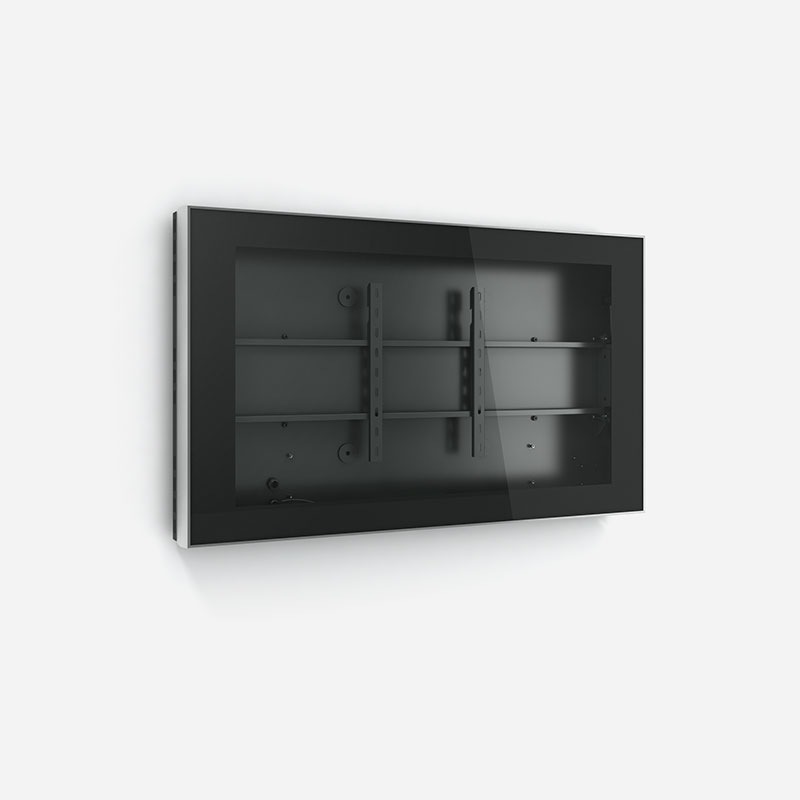

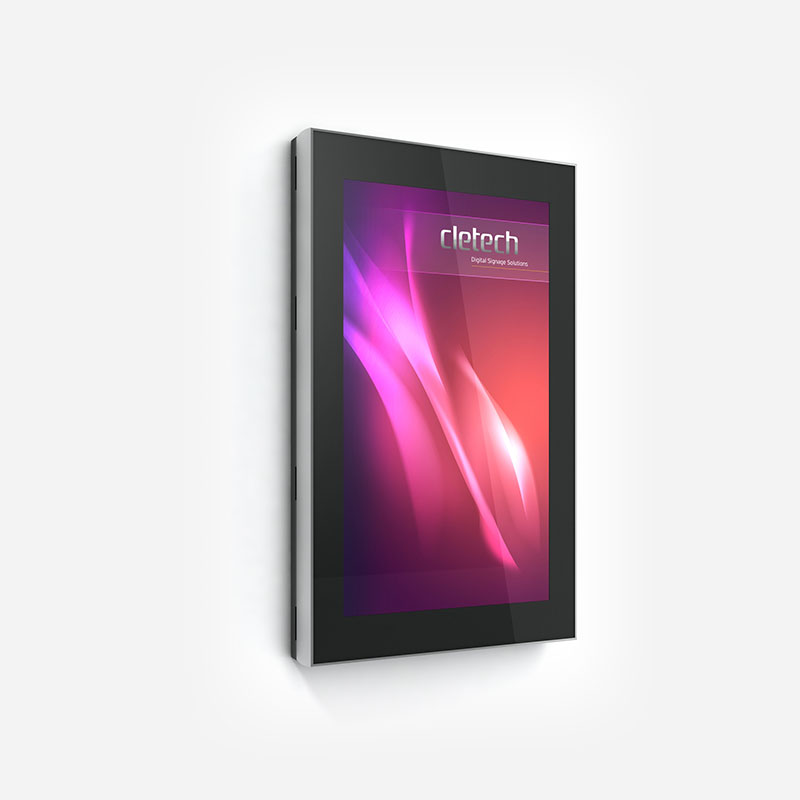

Z04 Wall Mount Digital Signage Indoor Monitor Enclosure
Wall mount enclosure for professional monitors.
Professional Protection with Style
The Cletech Z04 Wall Mount Digital Signage Indoor Monitor Enclosure is expertly designed to house and protect digital signage displays from 32" to 75". With a sleek, fully enclosed structure, it enhances any indoor environment such as retail stores, shopping malls, airports, hospitals, and more. Its modern appearance—thanks to precision-crafted galvanized steel and aluminum profiles—makes it ideal for settings demanding both form and function. The ultra clear 4mm ceramic-printed tempered glass front ensures your content is displayed clearly while remaining shielded from external damage. Whether you need vertical or horizontal screen mounting, the Z04’s VESA-standard compatibility ensures seamless integration.
Reliable Functionality Meets Seamless Maintenance

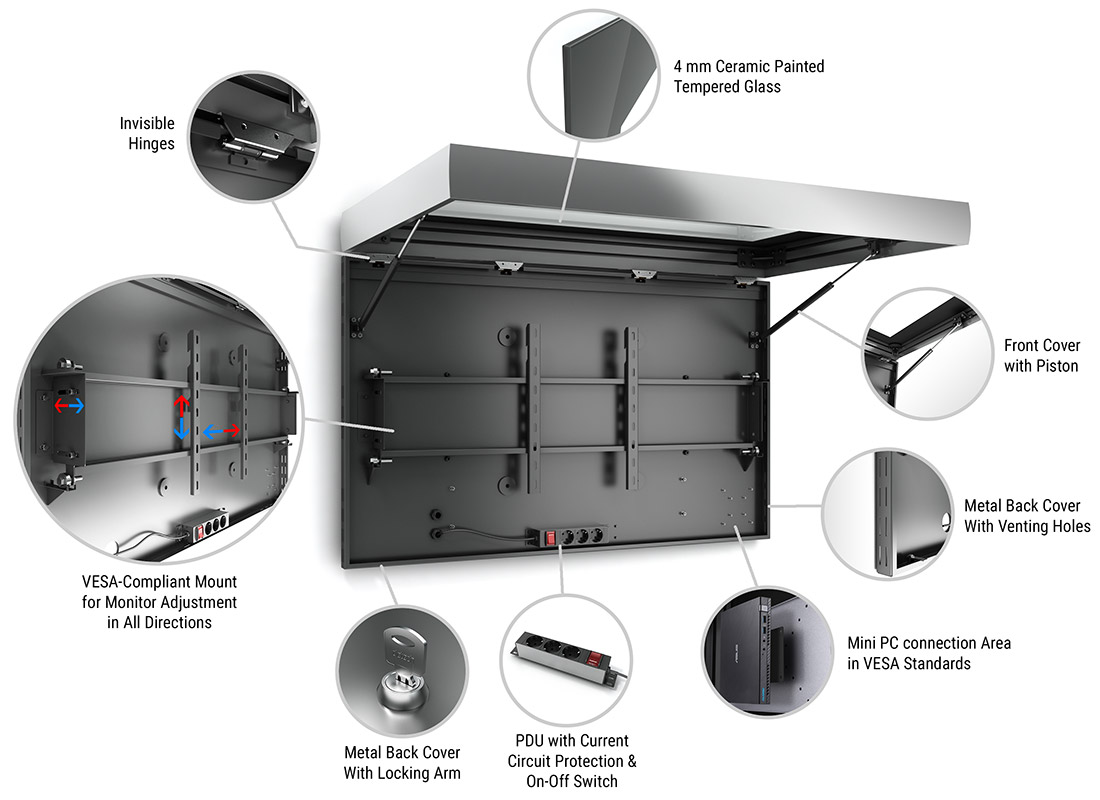

Beyond aesthetics, the Z04 enclosure is built for easy servicing and long-term reliability. Its gas-spring supported, dual-locking front panel opens upward, enabling rapid access for maintenance without dismounting the unit. The passive ventilation system maintains internal airflow without mechanical fans, enhancing lifespan while staying silent. Hidden cable management and internal mounting brackets preserve a tidy appearance. Every unit comes with a power distribution unit (PDU) featuring three surge-protected, switchable outlets. For additional flexibility, optional ceiling mounts and touch-enabled PCAP versions are available—making the Z04 a comprehensive and adaptable solution for secure indoor display deployments.
Sleek, Secure, and Smart Display Protection
Engineered for indoor digital signage needs, combining elegance with robust protection.
Highlight Features
Wide Compatibility
Supports 32" to 75" screens, fully compatible with most professional signage monitors.
Secure Mounting
Wall-mounted with internal locking—impossible to remove without opening the front panel.
Passive Ventilation
Discreet air inlets and outlets ensure effective passive cooling without extra noise.
Ultra Clear Front Glass
Equipped with 4mm ceramic-printed tempered glass for maximum screen visibility and protection.
Integrated Tech Space
Built-in VESA mounting area for mini PC/media players and includes a 3-outlet surge-protected PDU.
Premium Build and Finish
Crafted from galvanized and carbon steel with RAL-standard electrostatic powder coating.
| Monitor | 32" | 43" | 49" | 50" | 55" | 65" | 75" |
|---|---|---|---|---|---|---|---|
| Mount Type | Wall Mounting: Mounted to the wall using a custom-designed wall bracket specifically manufactured for the product. | ||||||
| Base Feets | No | ||||||
| Base Wheels | No | ||||||
| Tempered Glass | 4 mm Extra Clear Ceramic Painted Tempered Glass | ||||||
| Touch Screen | Optional: PCAP Touch | ||||||
| Ventilation Fans | No | ||||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | Front cover with locking mechanism from two point | ||||||
| Body Materials | Aluminum Profile Front Cover, Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
