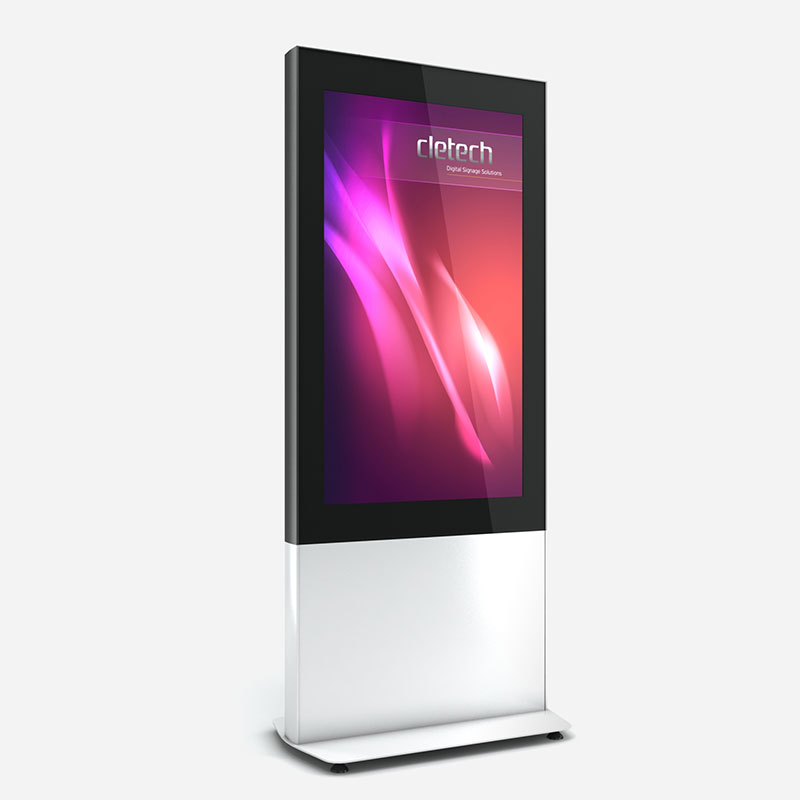

ZX Single Sided Digital Signage Indoor Totem Enclosure
Indoor totem enclosure for professional monitors.
Designed for Performance, Built for Versatility
The Cletech ZX Single Sided Digital Signage Indoor Totem Enclosure is the ideal solution for businesses looking to elevate their indoor communication with professional-grade visual displays. Supporting monitor sizes from 32 to 75 inches, this enclosure is fully compatible with a wide variety of professional signage monitors on the market. Its sleek aluminum frame is not only lightweight but also incorporates internal air channels to promote passive cooling, helping to maintain optimal screen performance over long durations. The front-facing panel features a 4 mm ceramic-printed ultra-clear tempered glass, delivering clarity while ensuring maximum screen protection in high-traffic environments. The unit is equipped with vertical VESA-compatible mounting points, allowing for easy installation of displays and making it a perfect fit for modern retail, hospitality, corporate, or public environments where space and style matter.
Smart Functionality Meets Professional Appeal

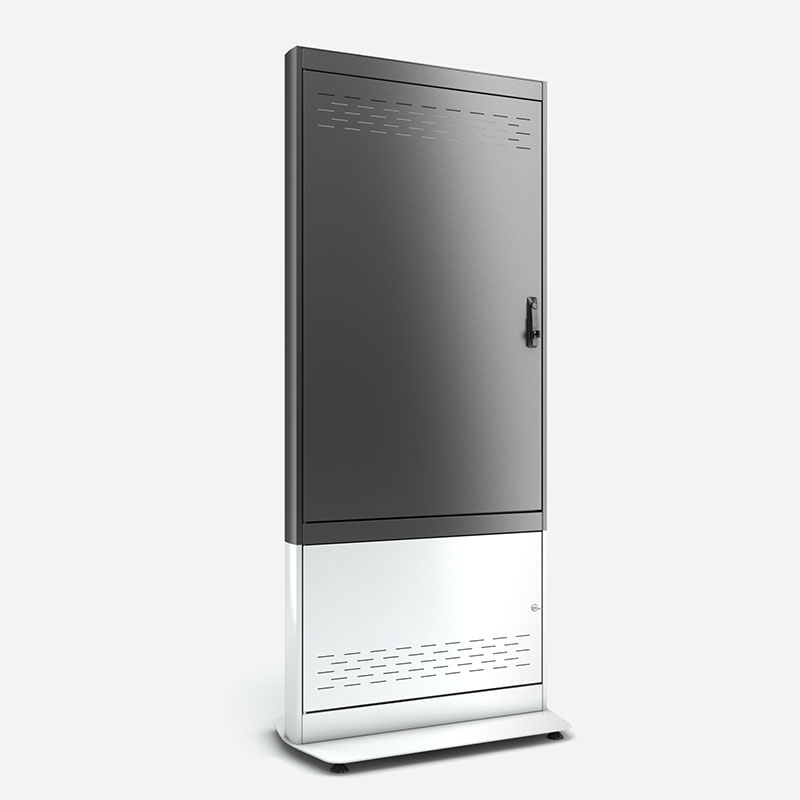

Every detail of the Cletech ZX Totem Enclosure is thoughtfully designed to combine functionality with an elegant appearance. Behind its modern look lies a structure of galvanized and carbon steel components, ensuring durability and resistance in busy indoor settings. The rear compartment offers secure access via two lockable hinged doors, providing effortless serviceability. An integrated PDU with surge protection and a master switch makes power management safe and convenient. Optional features such as PCAP touch integration, casters for mobility, and customizable finishes in RAL colors allow this totem to adapt to a range of professional applications. Whether it's deployed in shopping malls, airports, museums, showrooms, or universities, the ZX Totem enclosure transforms any indoor space into a dynamic, digital focal point.
Robust Design Meets Digital Innovation
A sleek and secure indoor totem enclosure engineered for impactful digital signage displays.

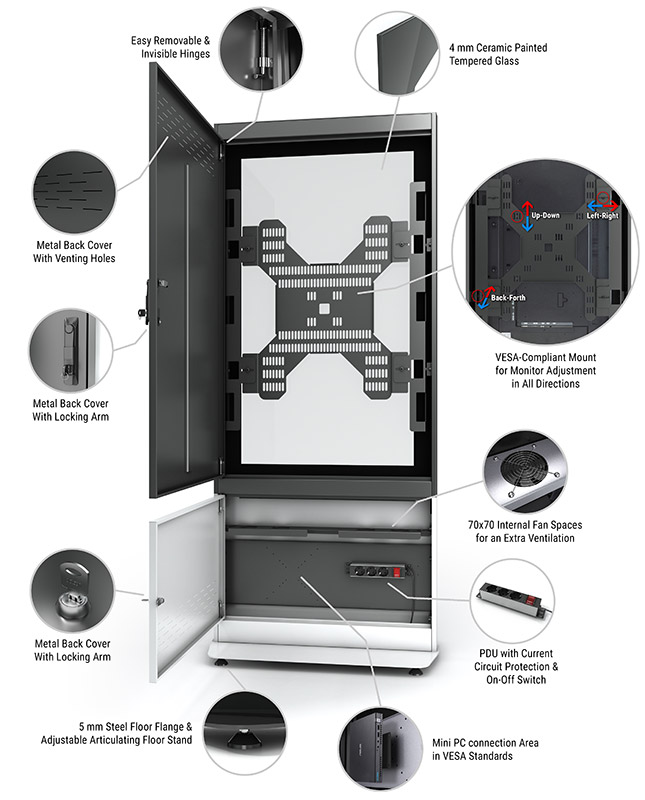

Key Features That Set It Apart
Wide Monitor Compatibility
Supports screen sizes from 32" to 75", accommodating a range of professional signage monitors.
Ultra-Clear Tempered Glass
4 mm ceramic printed ultra-clear glass ensures both visibility and protection on the front surface.
Efficient Passive Ventilation
Rear passive air ducts provide natural airflow; optional dual fans available for extra cooling.
Flexible Mounting Options

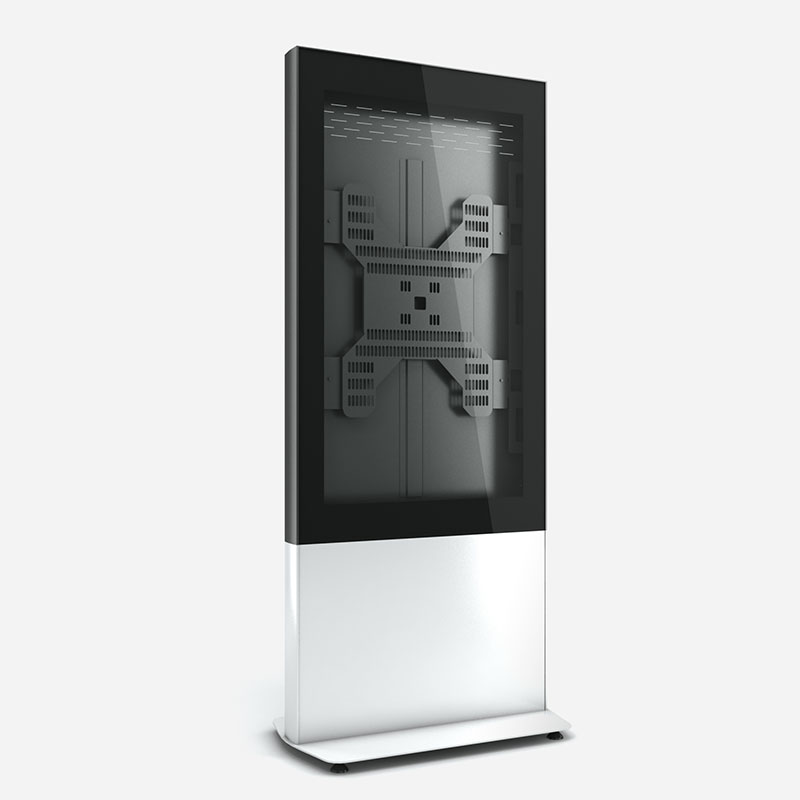

Compatible with VESA-standard mounts; designed for vertical screen orientation.
Built-In Media Management Space
Internal VESA-ready area for mini PCs or media players; includes a 3-outlet surge-protected PDU.
Durable, Elegant Construction
Made from custom aluminum profiles and galvanized steel, offering both strength and sleek aesthetics.
| Monitor | 32" | 43" | 49" | 50" | 55" | 65" | 75" |
|---|---|---|---|---|---|---|---|
| Mount Type | Standalone / Floor Mounting It can be fixed to the surface via the attachment holes in the base flange. | ||||||
| Base Feets | 4 x Articulated, height-adjustable feet | ||||||
| Base Wheels | Optional: 2 x swivel castors, 2 x swivel castors with brakes | ||||||
| Tempered Glass | 4 mm Extra Clear Ceramic Painted Tempered Glass | ||||||
| Touch Screen | Optional: PCAP Touch | ||||||
| Ventilation Fans | Optional: 2 x Inlet Fans (80x80 mm) | ||||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | ||||||
| Lockable Cover(s) | Rear upper cover with swing handle locking mechanism, Rear lower cover with locking mechanism | ||||||
| Body Materials | Aluminum Profile Chasis, Galvanized steel and carbon steel. | ||||||
| Coating | Electrostatic powder coating | ||||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | ||||||
