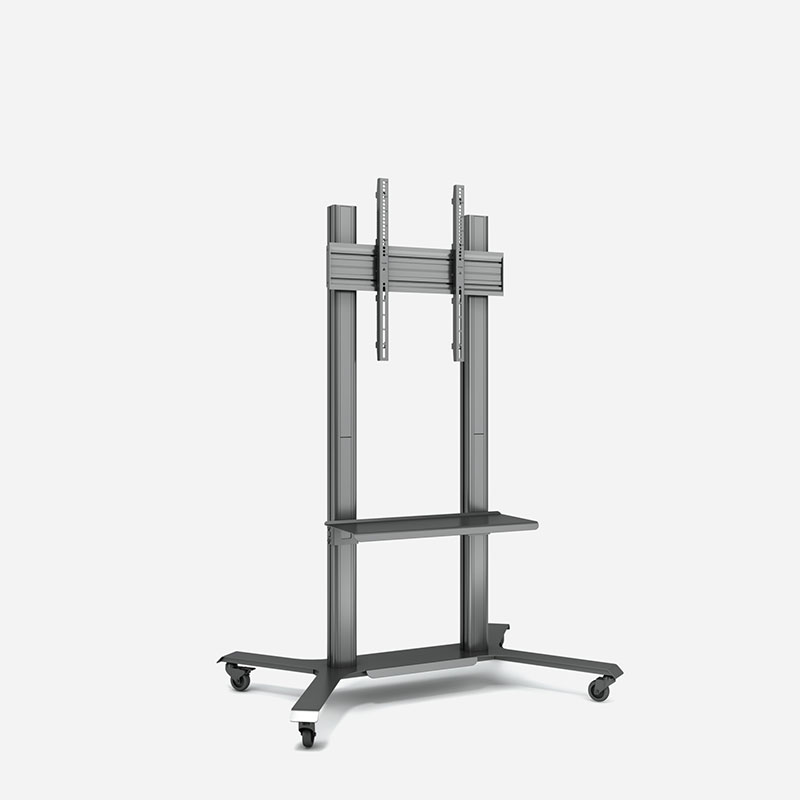

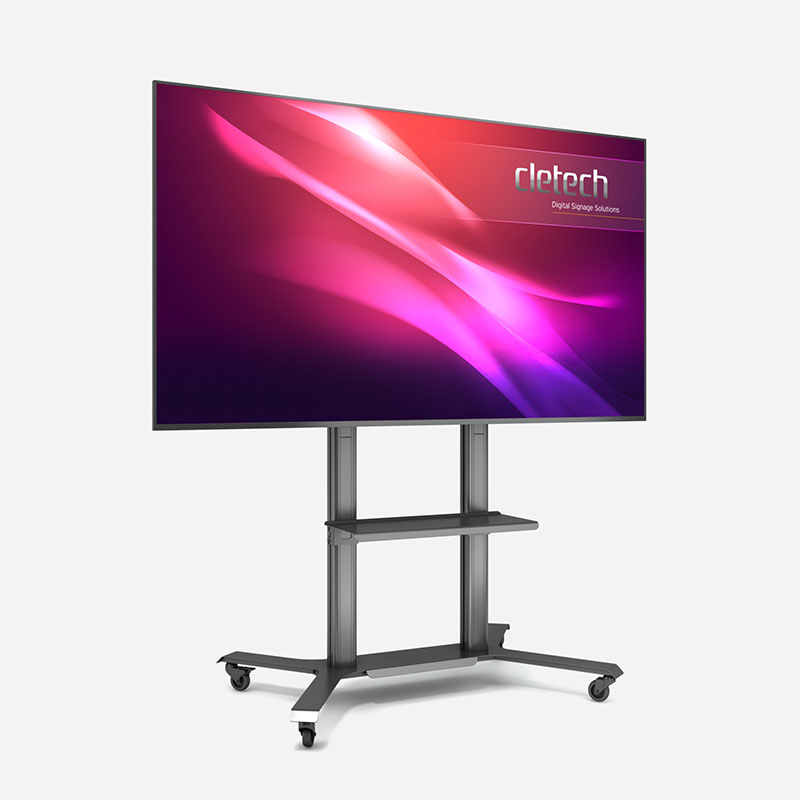

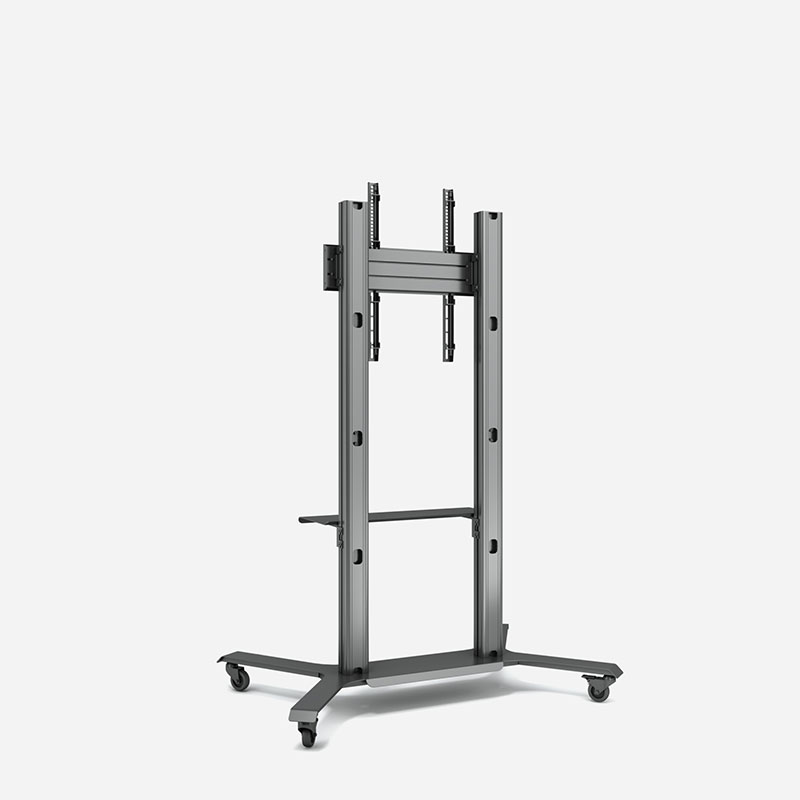

ST2LD-B Double Light Pole Trolley

Area of Use	Indoor
AV Mount Type	Trolleys
Product Family	Pro AV Series, ST2 Series

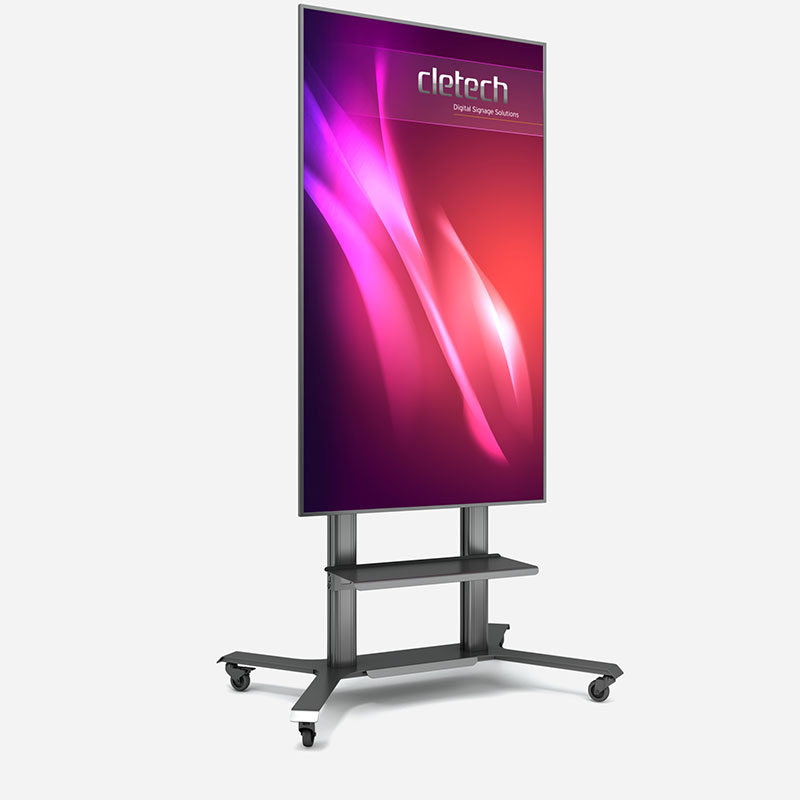

Orientation	Landscape, Portrait
Configuration	Single Sided
VESA	100×100, 200×200, 200×300, 200×400, 75×75, 300×300, 400×300, 400×400, 600×400, 600×600, 800×400, 800×600, 900×600
Color OptionsThe specified colors are standard. For requests involving different colors, please contact our sales team.	Black, Silver, White

Display Size

SKU:N/A

Categories:AV Mounts, Pro Series, Trolleys

Specifications Downloads

Modular Professional Display Mounting System

Designed for professional signage and commercial display use, this modular system allows full flexibility in installation, height adjustment, cable management, and accessory integration — ensuring a clean, stable, and customizable setup.

CABLE MANAGEMENT

Keep your installation clean and professional. The removable covers on the aluminum pole allow you to neatly conceal and organize all power and signal cables inside the structure.

HEIGHT ADJUSTABLE MOUNT

The horizontal carrying aluminum bar not only supports the monitor arms but also moves along the aluminum pole, allowing you to position the display at your desired height easily.

LOCAKABLE CASTER WHEELS

Thanks to its smooth-rolling and lockable casters, the system can be easily moved to any location and securely fixed in place when needed.

ADJUSTABLE METAL SHELF

A sturdy metal shelf that can be easily mounted onto the aluminum pole and adjusted to the desired height for placing media players or accessories. (Optional)

ADJUSTABLE CAMERA MOUNT

A versatile camera holder that allows angle and height adjustment on the aluminum pole, providing an optimal viewing position for video conferencing or monitoring. (Optional)

ADJUSTABLE STABILIZING FOOT

The base includes a jointed leveling foot that can be adjusted to compensate for uneven floors, ensuring a secure and stable installation. (Optional)

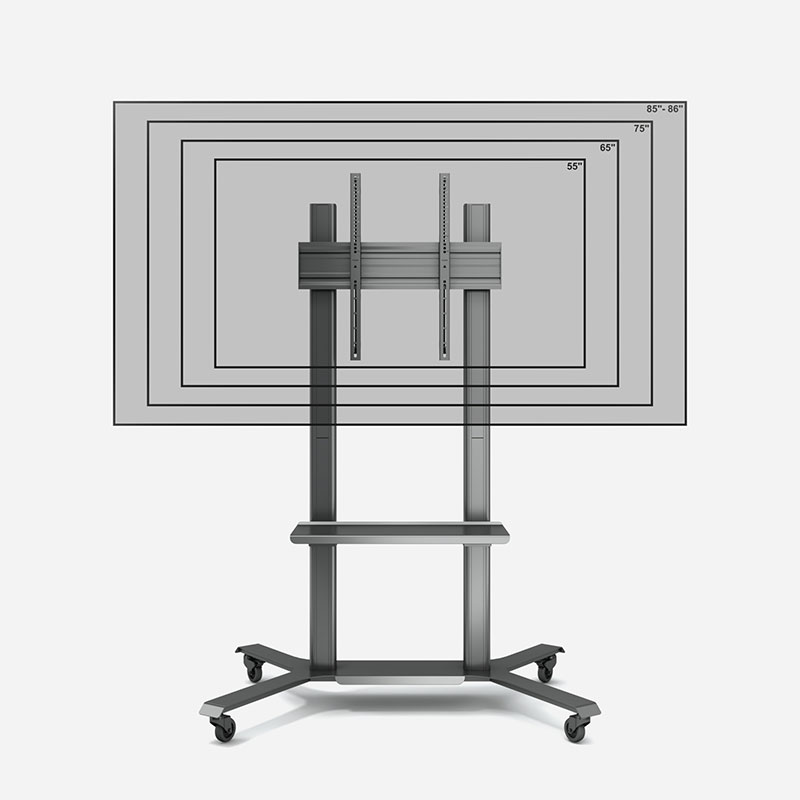

Avaliable Screen Size	55" - 88"	65" - 98"
Base	4-Legged Spider Steel Floor Flange
Base Feets	Optional: 4 x Articulated, height-adjustable feets
Base Wheels	2 x swivel castors, 2 x swivel castors with brakes
VESA Pattern	100x100 200x200 300x200 300x300 400x300 400x400 600x400 600x600 800x600	100x100 200x200 300x200 300x300 400x300 400x400 600x400 600x600 800x600 800x800 900x600 900x900
Maximum Load	50 kg	60 kg
Fix Arms	FA600	FA900
Tilt Arms	Optional
Micro Adjustable Arms	No
Dimensions (WxHxD)	-	-
Weight	-	-
Shelf	SH02 Single Strong Pole Metal Shelf (Optional)
Cam Holders	CH01 Height-adjustable (Optional)
Body Materials	Aluminum, steel, plastic
Coating	Electrostatic Powder Coating
Standard Colors	Black, Silver, White
Custom Color	Can be produced for orders of 20 units or more, or upon request for special projects.
