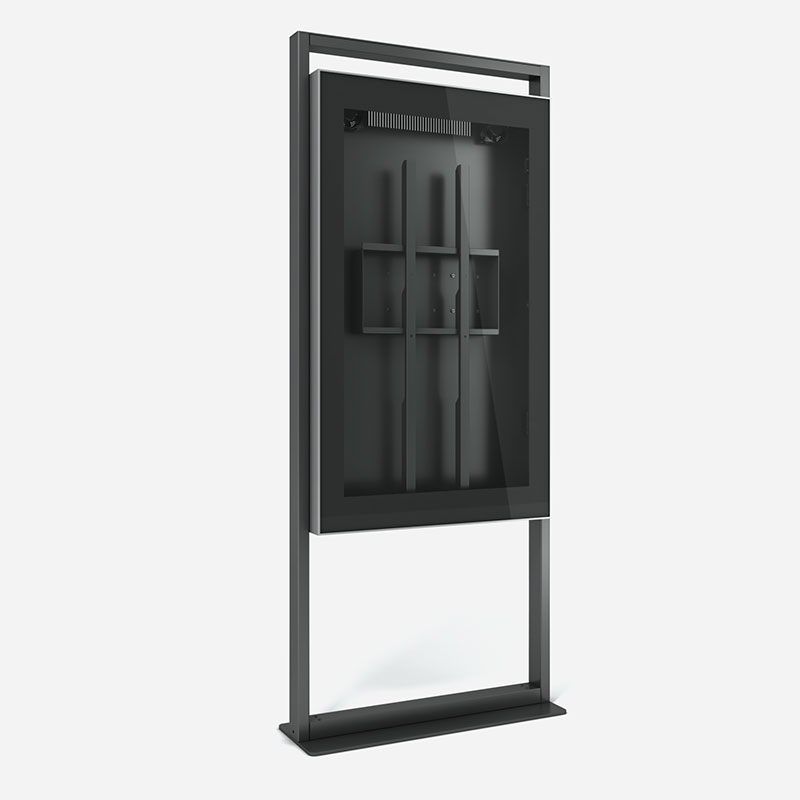

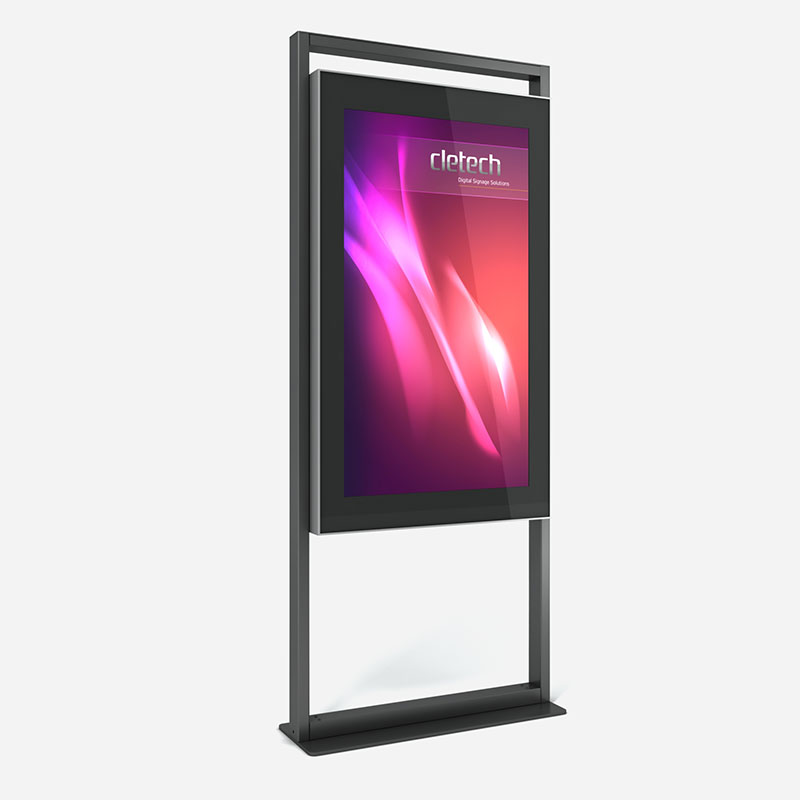

C05 Single Sided Digital Signage Indoor Totem Enclosure
A Modern Solution for Indoor Digital Signage Needs
The Cletech C05 Single Sided Digital Signage Indoor Totem Enclosure delivers a streamlined and secure way to showcase high-impact digital content in indoor settings. Designed to accommodate 49" to 85" professional Signage monitors, it supports a wide array of brands and ensures compatibility through its VESA-standard mounting pattern. Its structure features a fully enclosed, tamper-resistant chassis made from galvanized steel and carbon components, complemented by a custom aluminum profile on the front. This blend of materials not only enhances aesthetic appeal but also ensures structural reliability in high-traffic public areas.
The front is protected by a 4 mm ceramic-printed ultra-clear tempered glass that enhances screen visibility while shielding the display from dust and impact. Its ventilation system, consisting of passive intake vents and dual exhaust fans, maintains optimal internal temperatures even during continuous use. Whether it’s placed in shopping malls, corporate buildings, or transportation hubs, this totem is engineered to support long-term, standalone operation with minimal service interruptions.
Designed for Practicality, Built for Performance
Beyond its sleek appearance, the Cletech C05 is built for practicality and convenience. Ground mounting is made secure and seamless thanks to its flange base design that ensures full contact with the floor—no adjustment feet required. For service access, a gas piston-assisted front cover with dual locking points opens upward, allowing quick access for technicians without compromising security.
Inside, you'll find thoughtful provisions like a surge-protected 3-outlet PDU and a compartment with VESA-standard mounting holes, ideal for a media player or mini PC. Cable routing is entirely concealed, ensuring a clean installation and professional finish. Its electrostatic powder-coated surface, available in standard and optional RAL colors, offers resistance to scratches and corrosion. Additionally, optional upgrades like PCAP touch or glass-free models for touch monitors make the C05 highly adaptable to evolving digital signage needs. Whether in airports, museums, conference centers, or educational institutions, this totem enclosure delivers unmatched versatility and reliability in digital display housing.
Cletech C05 Indoor Totem Enclosure – Where Design Meets Durability
Crafted with precision and built for performance, the Cletech C05 seamlessly blends sleek aesthetics with industrial-grade materials for unmatched digital signage display.

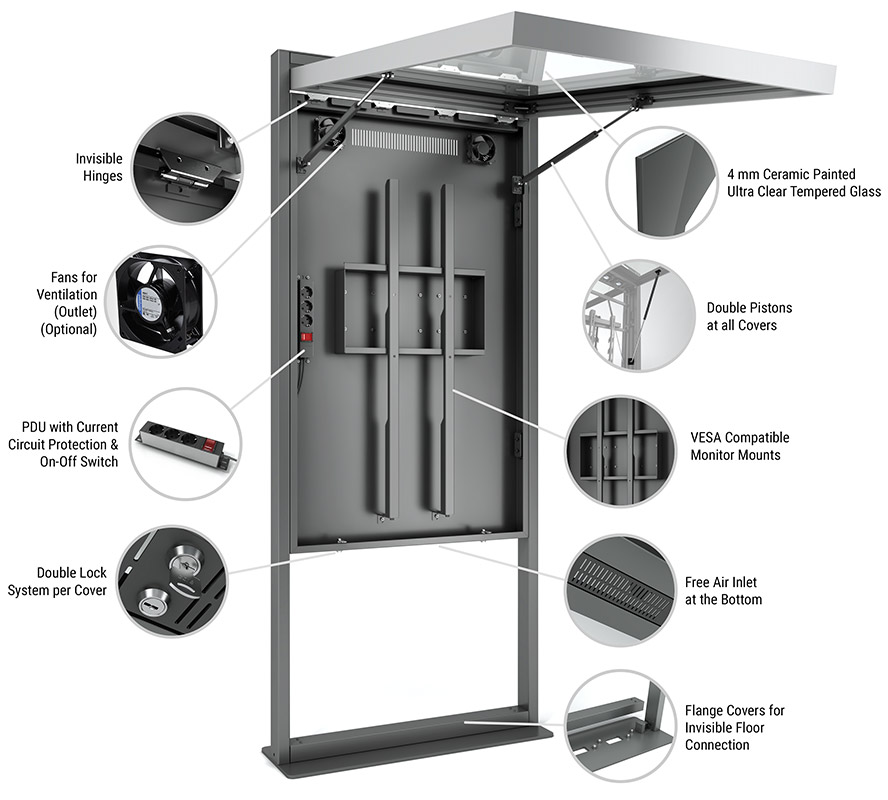

Key Features at a Glance
Wide Monitor Compatibility
Supports 49" to 85" professional Signage monitors across various brands with full VESA compliance.
Ultra Clear Tempered Glass
Features 4 mm ceramic-printed, ultra-clear tempered front glass for enhanced screen protection and visibility.
Advanced Ventilation System
Equipped with passive intake vents and dual 120x120 mm exhaust fans for optimal internal airflow.
Robust Steel and Aluminum Build
Constructed with galvanized steel chassis and custom aluminum front cover for maximum durability and elegance.
Easy Installation & Service Access
Discreet ground mounting system and lockable gas-spring-assisted front panel for secure and quick maintenance.
Power & Media Management
Includes a surge-protected PDU with switch and VESA-ready compartment for media player or mini PC.
| Monitor | 49" | 50" | 55" | 65" | 75" | 85" |
|---|---|---|---|---|---|---|
| Mount Type | Floor Mounting: Should be anchored to the surface through the connection holes on the base flange. | |||||
| Base Feets | No | |||||
| Base Wheels | No | |||||
| Tempered Glass | 4 mm Extra Clear Ceramic Painted Tempered Glass (Standard) | |||||
| Touch Screen | Optional PCAP Touch | No | ||||
| Ventilation Fans | 2 x 120x120 mm fans for hot air exhaust | 4 x 120x120 mm fans for hot air exhaust | ||||
| Power Control | 3-Outlet Surge-Protected Switched PDU | |||||
| Lockable Cover(s) | Front cover with locking mechanism from two point | |||||
| Body Materials | Aluminum Profile Front Cover, Galvanized steel and carbon steel | |||||
| Coating | Electrostatic powder coating | |||||
| Custom Color | Can be produced for orders of 20 units or more, or upon request for special projects. | |||||
| Client Logo | Can be produced for orders of 20 units or more, or upon request for special projects. | |||||
